PFC2225BNP-152

Common Mode Chokes Overview

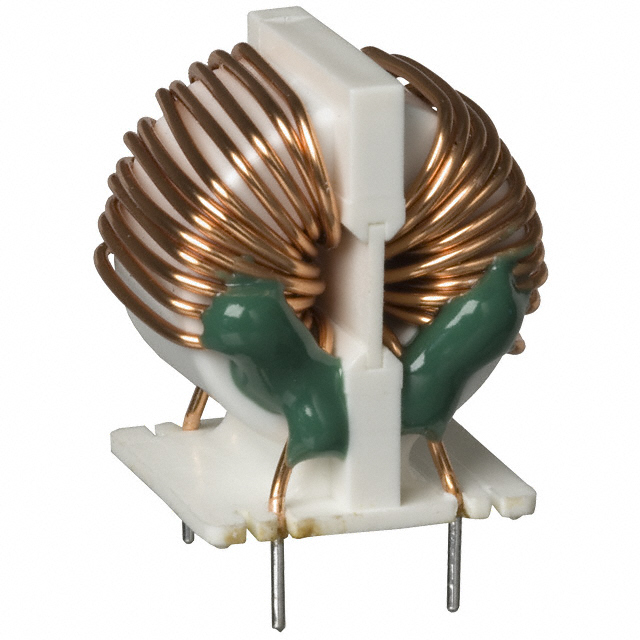

The PFC2225BNP-152 is a two-line common mode choke manufactured by Sumida America Components Inc., designed for through-hole mounting. It provides an inductance of 1.5 mH measured at 1 kHz and supports a maximum DC current rating of 5 A. The component features a maximum DC resistance (DCR) of 26 mOhm. Its physical dimensions are 0.984 inches in length, 0.787 inches in width, with a height of 0.984 inches (25.00 mm x 20.00 mm x 25.00 mm). The operating temperature range extends from -40°C to +85°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Designed for through-hole vertical mounting applications
• Constructed for high current handling capabilities

Common Mode Chokes Applications

• AC power line filtering
• Electromagnetic interference suppression in power supplies
• Common mode noise reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific suffix and package type against the official Sumida datasheet to ensure compatibility with assembly requirements. Confirm that the through-hole mounting style matches the target PCB layout. Check for any RoHS compliance documentation if environmental regulations apply to the final product. Ensure the 5A current rating meets the circuit's operational demands without saturation.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for AC line filtering with a 1.5 mH inductance value. The 5A current rating makes it suitable for higher power applications compared to surface mount alternatives. Consider the physical footprint of 25.00 mm x 20.00 mm for board space planning. Verify that the 26 mOhm DCR aligns with efficiency targets for the specific power stage design.

Common Mode Chokes Part Context

This part belongs to the PFC2225BNP series of common mode chokes from Sumida. These components are engineered for power line applications where robust noise filtration is necessary. The series offers various inductance values and current ratings to suit different power supply designs. The through-hole construction provides mechanical stability for heavy-duty connections.

Common Mode Chokes Replacement Considerations

Direct substitutes must match the 1.5 mH inductance, 5A current rating, and through-hole package. Verify dimensional compatibility with existing PCB footprints. Ensure equivalent DCR and temperature performance characteristics are maintained in any alternative component selection.
