PFC2225BNP-502

Common Mode Chokes Overview

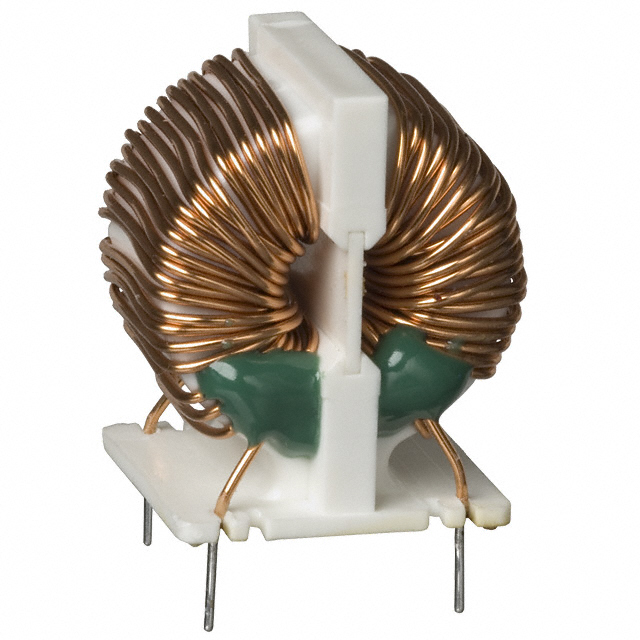

The PFC2225BNP-502 is a through-hole AC common mode choke manufactured by Sumida America Components Inc. It features an inductance of 5 mH and a rated current of 3 A. The component is designed for two-line applications and utilizes a lead-free, RoHS-compliant construction.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Through-hole mounting configuration for robust mechanical attachment
• Lead-free construction compliant with environmental standards

Common Mode Chokes Applications

• AC power line filtering
• Electromagnetic interference suppression in consumer electronics
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet before integration. Confirm that the through-hole package dimensions align with the target PCB layout. Ensure the selected variant matches the required current rating and inductance tolerance for the intended circuit design.

Common Mode Chokes Selection Notes

Select this component for applications requiring through-hole assembly of AC common mode chokes. Evaluate the 5 mH inductance and 3 A current rating to ensure compatibility with the system's power handling requirements. Consider the physical size and mounting style relative to the enclosure constraints.

Common Mode Chokes Part Context

This part belongs to the PFC2225BNP series of common mode chokes from Sumida. These components are engineered for AC line filtering applications. The series offers various inductance values and current ratings to suit different power management needs in electronic devices.

Common Mode Chokes Replacement Considerations

Direct substitute part numbers are not confirmed in the provided documentation. Verify compatibility with alternative components by comparing inductance, current rating, and package dimensions.
