PFC2225BNP-702

Common Mode Chokes Overview

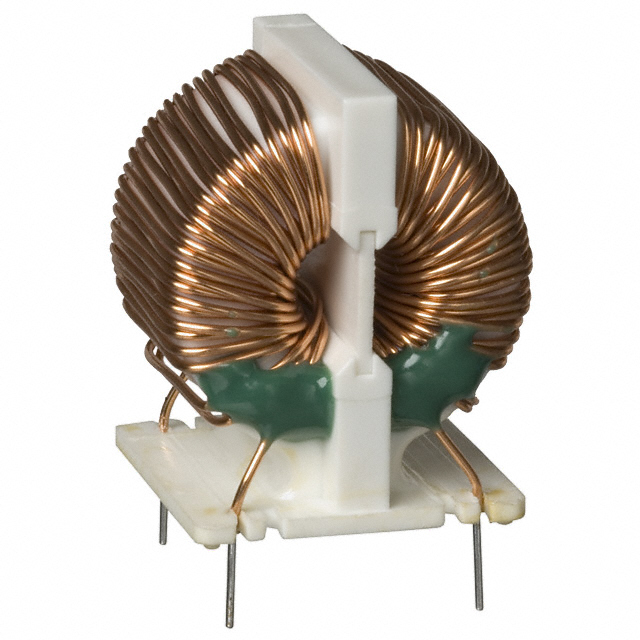

The PFC2225BNP-702 is a through-hole common mode choke manufactured by Sumida America Components Inc. It features a nominal inductance of 7 mH at a test frequency of 1 kHz and supports a current rating of 2.5 A. The component utilizes a two-line configuration designed for electromagnetic interference suppression. It is housed in a standard through-hole package suitable for PCB mounting.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression via dual-line filtering architecture
• Engineered with a high inductance value for effective EMI attenuation
• Constructed for robust through-hole integration into circuit boards

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• Electromagnetic interference reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the specific suffix designation against official Sumida documentation to confirm exact electrical characteristics and pinout compatibility. Confirm that the through-hole form factor aligns with the target printed circuit board layout requirements before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a high-inductance common mode choke is required for through-hole applications. Ensure the 2.5 A current rating meets the operational demands of the circuit. Validate that the physical dimensions fit the available board space for vertical or horizontal mounting orientations.

Common Mode Chokes Part Context

This part belongs to the PFC series of common mode chokes from Sumida. These components are designed to suppress common mode noise in power and signal lines. The NNP suffix typically indicates specific material or construction variations within the manufacturer's portfolio, distinct from standard through-hole variants.

Common Mode Chokes Replacement Considerations

Direct substitutes include the PFC2225B variant. Verify that replacement parts maintain identical inductance, current ratings, and through-hole footprint specifications to ensure mechanical and electrical compatibility.
