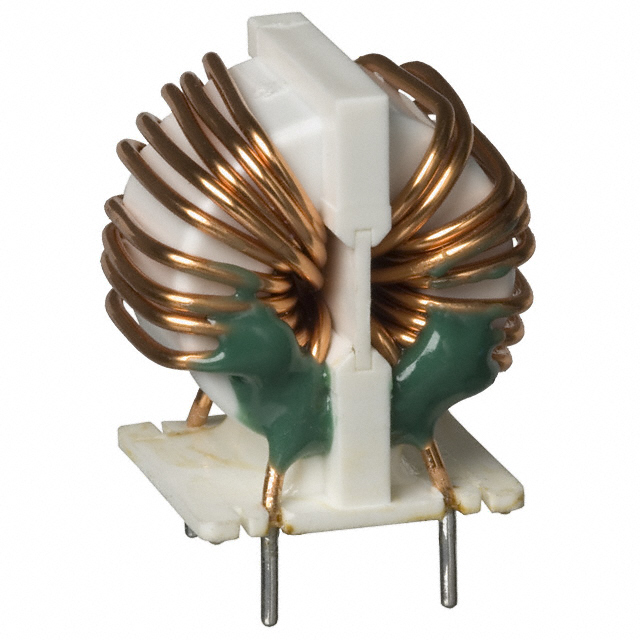

PFC2225BNP-801

$2.64

Description：CMC 800UH 8A 2LN TH
Series：PFC
Mfr：Sumida America Components Inc.
Package：Bulk

SKU:5bea91c5af40 Category: Common Mode Chokes Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PFC2225BNP-801 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is CMC 800UH 8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PFC2225BNP-801

Description：CMC 800UH 8A 2LN TH
Series：PFC
Mfr：Sumida America Components Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：12.5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max)：1.063" (27.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：800 µH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PFC2225BNP-801

PFC2225BNP-801

Common Mode Chokes Overview

The PFC2225BNP-801 is a two-line common mode choke manufactured by Sumida America Components Inc. It features an inductance of 800 µH measured at 1 kHz and supports a current rating of 8 A with a maximum DC resistance of 12.5 mOhm. Designed for through-hole mounting, this component utilizes magnetic core technology to suppress electromagnetic interference in AC circuits.

Common Mode Chokes Feature Summary

Provides effective common mode noise suppression for dual-line applications
Engineered for high-current handling capabilities up to 8 amperes
Constructed for reliable through-hole PCB integration

Common Mode Chokes Applications

AC power line filtering
Electromagnetic interference suppression in electronic equipment
Common mode noise reduction in power supplies

Common Mode Chokes Procurement Notes

Verify the specific package type and pin configuration against the official datasheet before ordering. Confirm that the through-hole mounting style aligns with your board design requirements. Ensure the 8 A current rating meets the operational demands of your circuit to prevent saturation or excessive heating during normal use.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation for AC lines. The 800 µH inductance value is suitable for standard frequency filtering applications. Consider the 12.5 mOhm DC resistance for efficiency calculations in low-voltage drop scenarios.

Common Mode Chokes Part Context

This part belongs to the PFC series of common mode chokes from Sumida. It is distinct from fixed inductors like the CDRH62B series due to its multi-winding choke architecture designed specifically for differential noise cancellation rather than energy storage.
