PFPK77LR

Overview

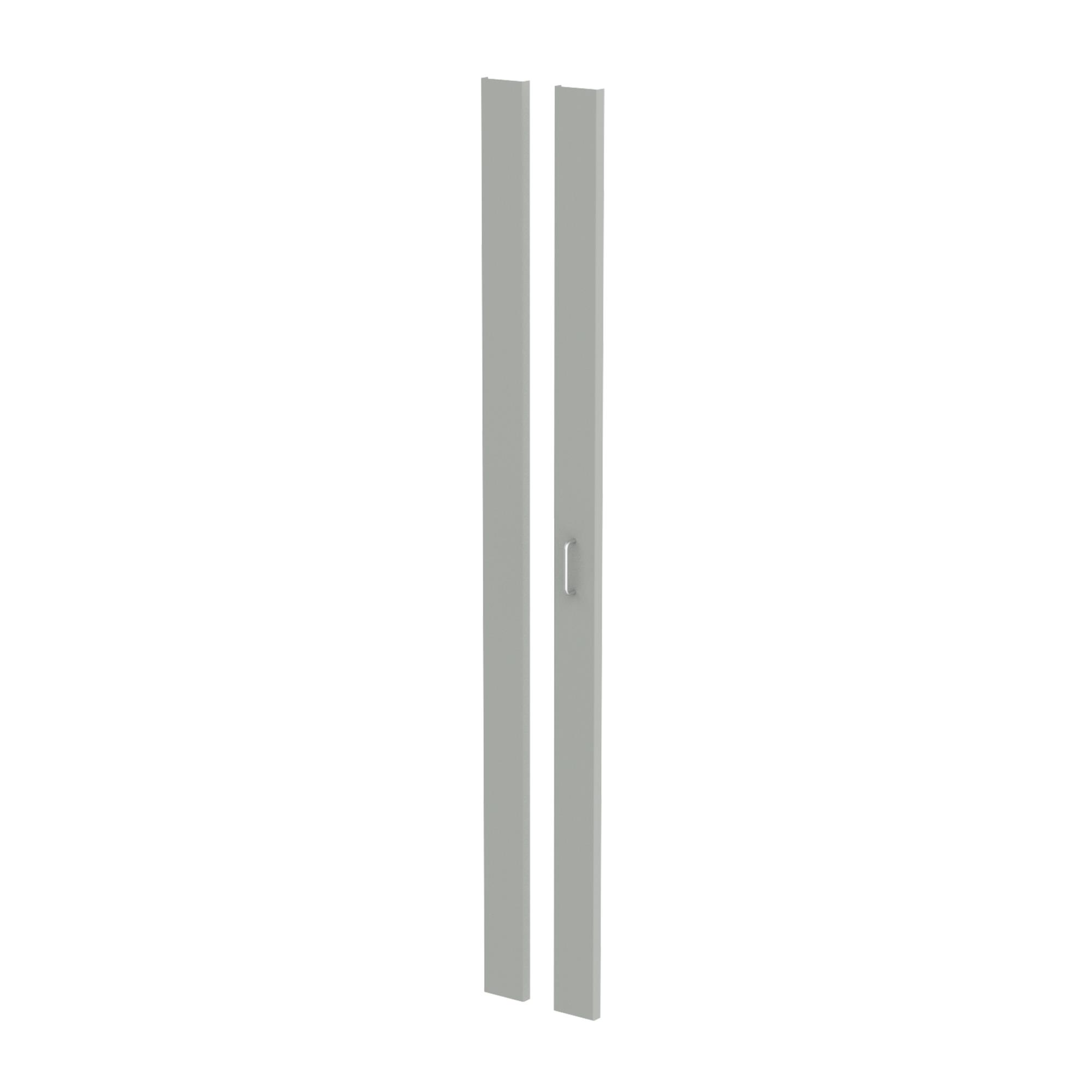

The PFPK77LR is a filler panel kit manufactured by nVent Hoffman, designed specifically for use with ProLine Heavy-Duty Swing-Out Rack Frames. It accommodates rack frames measuring 700 mm in height and 700 mm in width. The kit supports both left and right mounting configurations to address spatial gaps within the enclosure structure.

Feature Summary

• Provides structural filling for unused space within 700x700 mm rack frames
• Supports flexible installation via left or right justification options
• Constructed from steel material finished in light gray

Applications

• Mounting ProLine Heavy-Duty Swing-Out Rack Frames
• Filling extra space between 700-mm wide frame structures
• Creating ready-to-populate panels for electrical enclosures

Procurement Notes

Verify that the target enclosure utilizes a 700 x 700 mm rack frame configuration before procurement. Confirm the required mounting orientation (left or right justified) matches the specific installation layout. Ensure compatibility with the ProLine Heavy-Duty Swing-Out series to guarantee proper fitment and structural integrity of the assembly.

Selection Notes

Select this component when retrofitting or assembling 700 mm square rack frames that require blanking off unused vertical or horizontal sections. It is intended for use where standard panel dimensions do not align with the frame opening, ensuring a complete enclosure surface for equipment mounting.

Part Context

This part belongs to the Hoffman accessory line for industrial electrical enclosures. It serves as a supplementary component rather than a primary housing unit. The product is engineered to maintain the aesthetic and functional continuity of the rack system by eliminating open gaps within the frame structure.

Replacement Considerations

Cross-reference number 91540 is identified as an equivalent identifier for this specific filler panel kit. Verify dimensional compatibility with existing frame hardware before substituting.
