PFS7524L

Overview

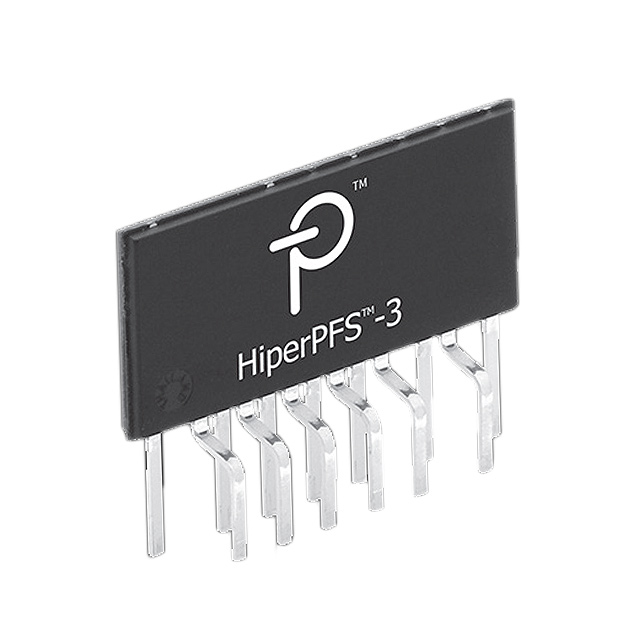

The PFS7524L is a HiperPFS-3 power factor correction controller from Power Integrations, designed for continuous conduction mode (CCM) boost PFC applications. It delivers up to 150 W peak power with a 90 VAC input range. The device integrates a gate driver and power MOSFET within a single low-profile package. Key electrical parameters include a maximum output voltage of 530 V and an operating junction temperature range from -40 °C to 150 °C. It features comprehensive protection mechanisms such as output undervoltage, overtemperature, input overvoltage, and short-circuit protection.

Feature Summary

• Integrates CCM boost PFC controller, gate driver, and power MOSFET in a single package
• Eliminates external current sense resistors to reduce power loss
• Includes advanced protection features like UV, OV, brown-in/out, and hysteretic thermal shutdown
• Provides cycle-by-cycle current limit and Safe Operating Area (SOA) protection

Applications

• Personal computers and printers
• LCD televisions
• Video game consoles
• High-power adapters and USB PD chargers
• Industrial control systems

Procurement Notes

Verify the specific suffix 'L' against the manufacturer's official datasheet to confirm pinout compatibility and thermal characteristics. Ensure the selected package variant matches the PCB footprint requirements. Cross-reference the RoHS compliance status with the latest product release notes. Confirm that the supplier provides genuine Power Integrations components to avoid counterfeit risks. Validate the ordering information using the official Mouser or DigiKey part numbers associated with this specific model.

Selection Notes

Select the PFS7524L for designs requiring high efficiency across the entire load range without external current sensing. It is suitable for applications needing robust protection features and wide input voltage operation. Consider the eSIP-16G package for thermal management needs. Evaluate the system's EMI filtering requirements due to the spread spectrum effect. Ensure the design supports the required peak power output of 150 W under specified conditions.

Part Context

The PFS7524L belongs to the HiperPFS-3 family, which combines analog core control with digital line monitoring for enhanced performance. This series is optimized for high power factor and efficiency in offline power supplies ranging from 75 W to 400 W. The family utilizes innovative control techniques to adjust switching frequency based on load and line conditions. It represents a mature solution for cost-effective and compact power factor correction stages.

Replacement Considerations

The PFS7524H is a direct replacement option within the same HiperPFS-3 series, offering identical functionality but potentially differing in package thermal properties or suffix specifications. Verify pin-to-pin compatibility before substitution. Other HiperPFS-3 models may require circuit redesign due to different power ratings or feature sets.
