PFS7726H

Overview

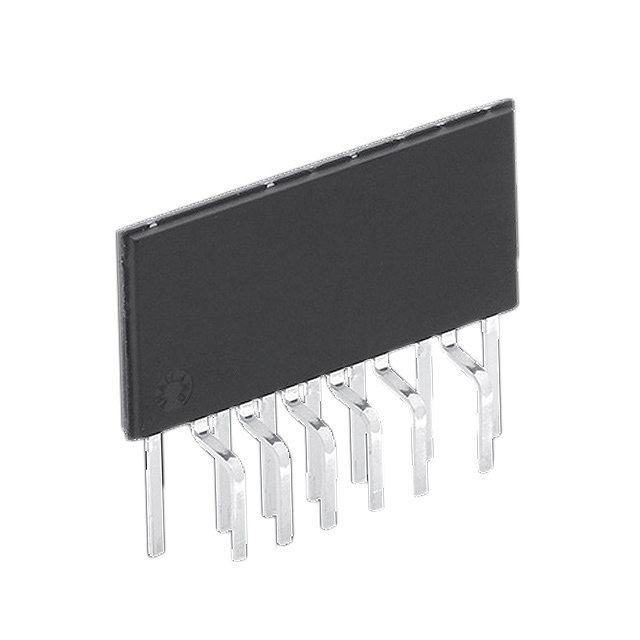

The PFS7726H is a HiperPFS-4 family power factor correction controller integrating a CCM boost PFC controller, gate driver, and 600 V power MOSFET in an eSIP-16D package. It operates with a switching frequency range of 22 kHz to 123 kHz and requires a supply voltage of 10.2 V to 15 V. The device supports through-hole mounting and functions within a junction temperature range of -40°C to 150°C.

Feature Summary

• Eliminates external current sense resistors by utilizing innovative control techniques that adjust switching frequency based on load and line conditions.
• Maximizes efficiency across the entire load range, particularly at light loads, while minimizing EMI filtering requirements through spread spectrum effects.
• Integrates advanced digital techniques for line monitoring and analog techniques for core control to maintain extremely low no-load power consumption.

Applications

• High-efficiency AC-DC power supplies
• Offline power converters requiring continuous conduction mode
• Applications demanding low no-load power consumption

Procurement Notes

Verify the specific suffix 'H' against the manufacturer's official datasheet to confirm pinout and thermal characteristics. Confirm RoHS compliance status and check for any product change notifications or end-of-life announcements prior to final design approval.

Selection Notes

Select this component when designing systems that require integrated high-voltage MOSFETs without external current sensing components. It is suitable for applications prioritizing wide bandwidth EMI reduction and high efficiency at light loads compared to fixed-frequency controllers.

Part Context

This part belongs to the HiperPFS-4 series from Power Integrations. It represents a fourth-generation evolution of integrated PFC solutions, combining digital control features with analog core stability to enhance performance metrics such as power factor and total harmonic distortion.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for potential alternatives.
