PG306R_R2_00001

$0.07

Description：DIODE STANDARD 600V 3A DO201AD
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR)

SKU:b0b826d80b65 Category: Single Diodes Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

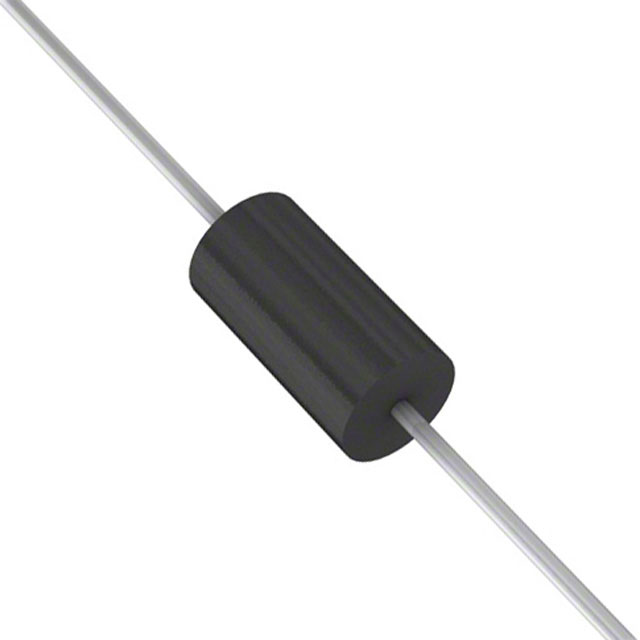

PG306R_R2_00001 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is DIODE STANDARD 600V 3A DO201AD. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for PG306R_R2_00001

Description：DIODE STANDARD 600V 3A DO201AD
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：250 ns
Current - Reverse Leakage @ Vr：1 µA @ 600 V
Capacitance @ Vr, F：60pF @ 4V, 1MHz
Mounting Type：Through Hole
Package / Case：DO-201AD, Axial
Supplier Device Package：DO-201AD
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for PG306R_R2_00001

PG306R_R2_00001

Single Diodes Overview

The PG306R_R2_00001 is a general-purpose rectifier diode manufactured by Panjit International Inc. It utilizes silicon technology and is housed in the DO-201AD axial leaded package. The component is rated for a maximum repetitive peak reverse voltage of 600V and supports a continuous forward current of 3A. It is supplied in reel packaging, with a factory pack quantity of 10000 units per reel.

Single Diodes Feature Summary

General-purpose rectification capability
High voltage blocking rating
Robust axial leaded construction

Single Diodes Applications

AC to DC power supply circuits
Bridge rectifier configurations
DC-DC converter input stages

Single Diodes Procurement Notes

Verify the specific suffix R2_00001 against the manufacturer's official datasheet to confirm packaging details and compliance status. Ensure the DO-201AD footprint matches the target PCB design. Confirm RoHS compliance documentation is available from the supplier before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a standard silicon rectifier with high voltage tolerance is required. The 600V rating provides sufficient margin for mains-powered applications. The 3A current capacity suits moderate power levels. Verify thermal management requirements for the DO-201AD package under expected load conditions.

Single Diodes Part Context

This part belongs to Panjit's discrete diode portfolio, specifically within the general-purpose rectifier category. It serves as a fundamental building block for power conversion systems. The DO-201AD package is a standard industry form factor for through-hole mounting in various electronic assemblies.
