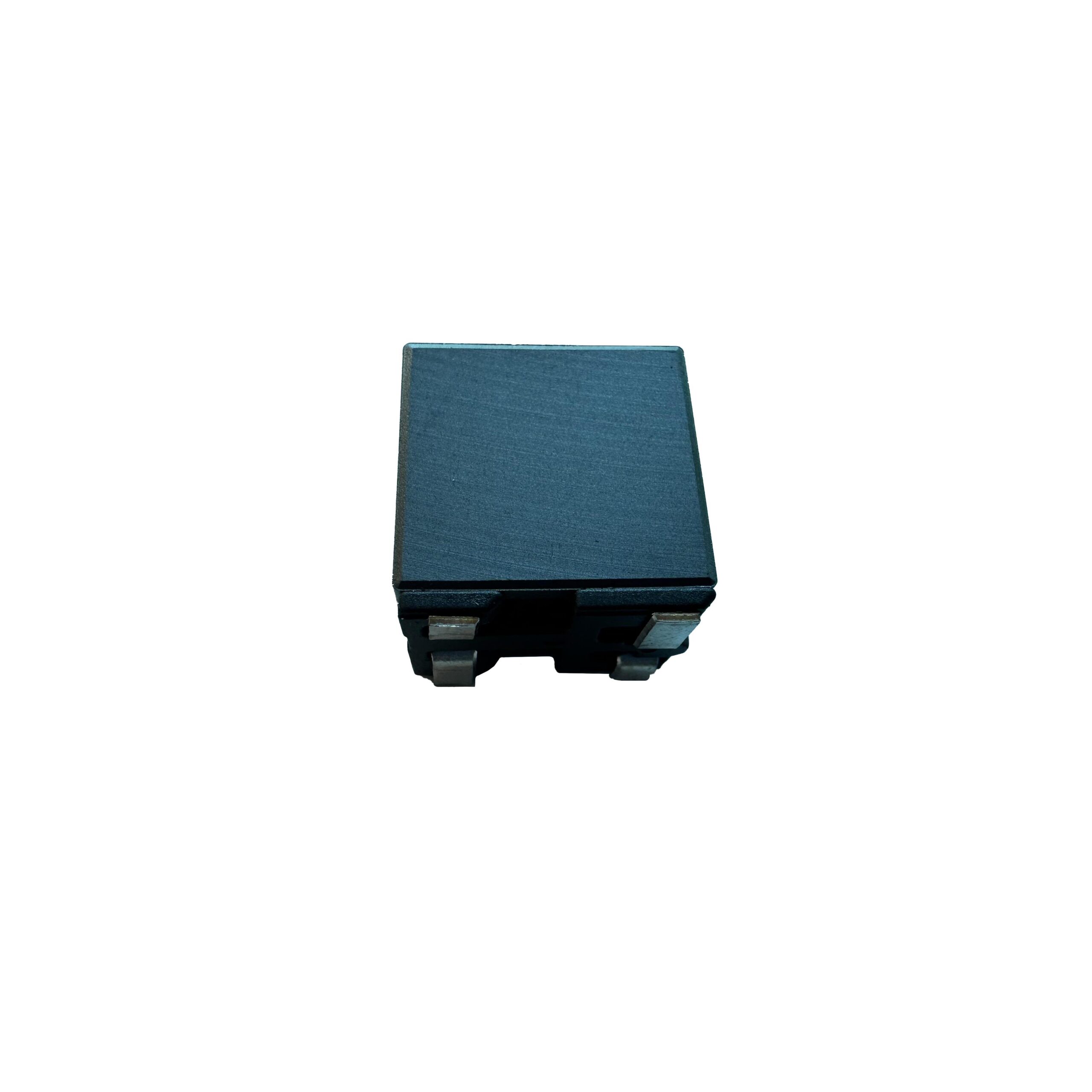

PGC6895NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is POWER CMC ER19, 25A, 225uH, SM. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PGC6895NLT
- Description：POWER CMC ER19, 25A, 225uH, SM
- Series：*
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：-
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PGC6895NLT
Common Mode Chokes Overview
The PGC6895NLT is a common mode choke manufactured by Pulse Electronics. It features an inductance of 225 µH and supports a DC current rating of 25 A. The component has a maximum DC resistance of 1900 µΩ to 2.5 mΩ and operates at temperatures up to 125°C. Its physical dimensions are 19 mm x 13 mm x 20 mm, utilizing an ER19 core structure.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for power lines
- Supports high current applications with 25 A rating
- Utilizes ER19 core technology for stable performance
Common Mode Chokes Applications
- Power supply input filtering
- DC-DC converter EMI suppression
- Industrial equipment noise reduction
Common Mode Chokes Procurement Notes
Verify the specific datasheet revision when ordering, as product change notices may affect specifications. Confirm the exact DC resistance value required for your design, as sources indicate variations between 1900 µΩ and 2.5 mΩ. Ensure the package dimensions match your PCB layout constraints before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component for circuits requiring significant common mode attenuation at moderate frequencies. The 25 A current rating makes it suitable for high-power industrial or commercial applications. Compare the 225 µH inductance against your specific EMI filter requirements to ensure adequate noise suppression without excessive saturation risks.
Common Mode Chokes Part Context
This part belongs to the CMSC product range from Pulse Electronics. It is designed for surface mount assembly. The ER19 core type indicates a specific ferrite material optimized for power line filtering. It serves as a passive component for electromagnetic interference mitigation in electronic systems.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if considering alternative common mode chokes with similar electrical characteristics and footprint dimensions.
