PH2-230/120-081

Headers, Male Pins Overview

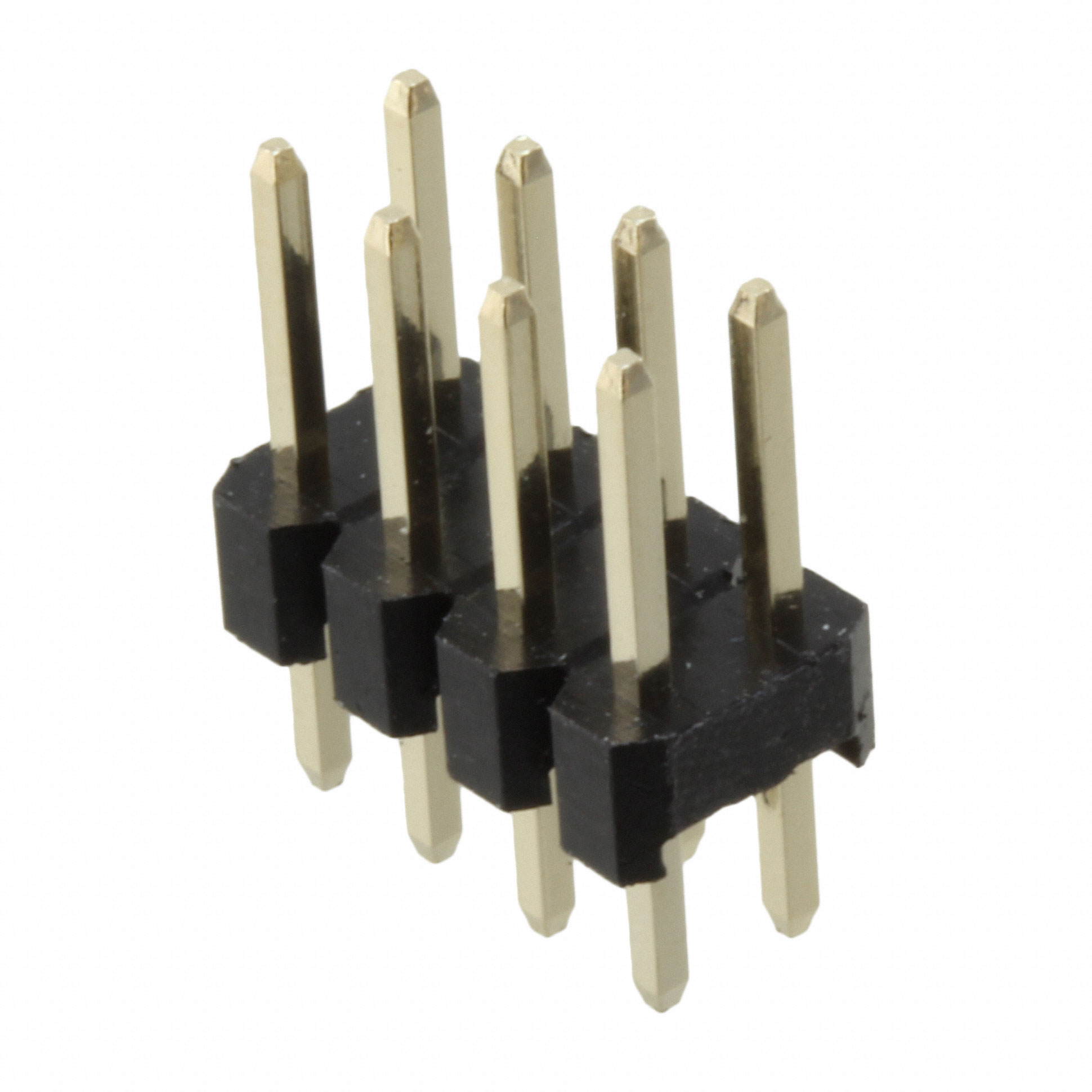

The PH2-230/120-081 is a vertical pin header manufactured by On Shore Technology Inc. It features an 8-position configuration with a 2.54mm row spacing. The component measures 10.16mm in length, 5.08mm in depth, and 8.38mm in height. The tail length is specified at 3.04mm, while the mating contact length is 5.84mm. Designed for through-hole mounting, it utilizes polyamide insulation and supports a maximum operating temperature of 85°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board or cable connection style
• Dual row male pin configuration
• Through-hole PCB mounting method

Headers, Male Pins Applications

• Industrial automation systems
• Communication equipment interfaces
• Power electronics assemblies
• Instrumentation devices

Headers, Male Pins Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and lead-free characteristics. Ensure the polyamide insulation rating aligns with thermal requirements. Confirm that the 2.54mm pitch matches the target PCB footprint. Validate the 85°C maximum operating temperature against environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a vertical dual-row header is required for 2.54mm pitch applications. The 8-position count suits moderate density connections. Polyamide insulation provides standard dielectric strength. Verify mechanical fit within the 10.16mm x 5.08mm envelope constraints.

Headers, Male Pins Part Context

This part belongs to the PH2 series of rectangular connectors from On Shore Technology Inc. The series focuses on male pin headers for reliable interconnections. The PH2-230/120-081 represents a specific variant within this family defined by its eight positions and vertical orientation.

Headers, Male Pins Replacement Considerations

Cross-reference compatible parts with identical 2.54mm pitch and 8-position vertical layout. Verify matching physical dimensions and electrical ratings before substitution.
