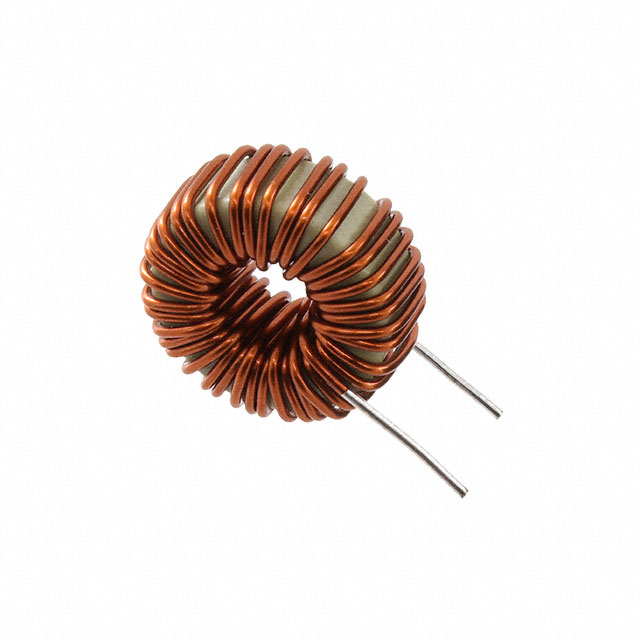

PHBC10-0R8A0068V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 68UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC10-0R8A0068V
- Description：CMC 68UH 3A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk,Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：42.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.846" Dia (21.50mm)
- Height (Max)：-
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：68 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC10-0R8A0068V
Common Mode Chokes Overview
The KEMET PHBC10-0R8A0068V is a leaded power inductor from the PHBC series. It features a toroidal core design with radial leads for PCB mounting. The component provides an inductance of 68 µH with a tolerance of ±20%. It supports a maximum DC current of 3 A and has a maximum DC resistance (DCR) of 42.3 mΩ. The operating temperature range spans from -40 °C to +125 °C.
Common Mode Chokes Feature Summary
- Toroidal magnetic core construction
- Radial through-hole termination style
- High thermal stability up to 125 °C
Common Mode Chokes Applications
- Power supply filtering circuits
- DC-DC converter input/output stages
- General-purpose choke applications
Common Mode Chokes Procurement Notes
Verify the specific suffix 'V' against the manufacturer's latest datasheet to confirm compliance status and material composition. Ensure the ordering quantity aligns with standard packaging formats provided by authorized distributors. Cross-reference the part number with official KEMET documentation to validate availability and production lifecycle status before finalizing procurement plans.
Common Mode Chokes Selection Notes
Select this component when a 68 µH inductance value is required with a 3 A current rating. The low DCR of 42.3 mΩ minimizes conduction losses in high-current paths. The wide temperature range makes it suitable for industrial environments. Verify that the radial lead spacing fits the target PCB footprint and that the unshielded design does not interfere with nearby sensitive components.
Common Mode Chokes Part Context
This part belongs to the KEMET PHBC series of leaded power inductors. These components are designed for general-purpose power electronics applications requiring robust performance. The series offers various inductance values and current ratings, utilizing toroidal cores to provide efficient magnetic containment and stable electrical characteristics across a broad temperature spectrum.
Common Mode Chokes Replacement Considerations
Direct substitutes include other KEMET PHBC series parts with identical electrical parameters. Generic replacements must match the 68 µH inductance, 3 A current rating, and 42.3 mΩ DCR. Ensure any alternative component maintains the same radial lead configuration and physical dimensions for board compatibility.
