PHBC10-0R8A0107V

Common Mode Chokes Overview

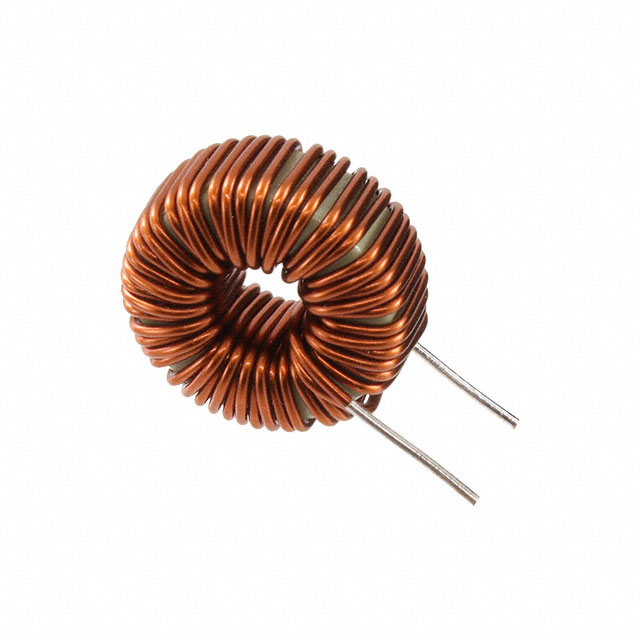

The KEMET PHBC10-0R8A0107V is a toroidal wire inductor from the PHBC series, designed for through-hole mounting. It features an inductance of 107 µH with a tolerance of ±20% and a maximum DC resistance of 53 mΩ. The component supports a maximum operating current of 3 A and operates within a temperature range of -40 °C to +125 °C. It utilizes a Fe-Ni core material and is tested at a frequency of 100 kHz. The physical dimensions are 22 mm in length, 9 mm in width, and 12.1 mm in height, with solder pad terminations.

Common Mode Chokes Feature Summary

• Utilizes Fe-Ni core material for stable magnetic performance
• Toroidal geometry provides efficient electromagnetic shielding
• Through-hole construction ensures secure mechanical attachment

Common Mode Chokes Applications

• Common mode choke applications
• EMI filter circuits
• Normal mode coil implementations

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official KEMET documentation to confirm exact electrical characteristics and packaging details. Ensure compatibility with standard through-hole assembly processes. Confirm RoHS compliance status as required by target market regulations before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a 107 µH inductance value is required with a 3 A current rating. The wide operating temperature range suits demanding environments. Verify that the 53 mΩ DC resistance meets circuit loss requirements. Ensure the 22 mm footprint fits the available PCB space.

Common Mode Chokes Part Context

This component belongs to the PHBC series of toroidal inductors manufactured by KEMET Electronics Corporation. These parts are categorized under EMI filters and common mode chokes. The series is characterized by its use of iron-nickel alloy cores, offering high permeability and saturation characteristics suitable for power line filtering applications.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official KEMET resources or distributor catalogs for verified cross-reference information.
