PHBC12-1R0A0080V

Common Mode Chokes Overview

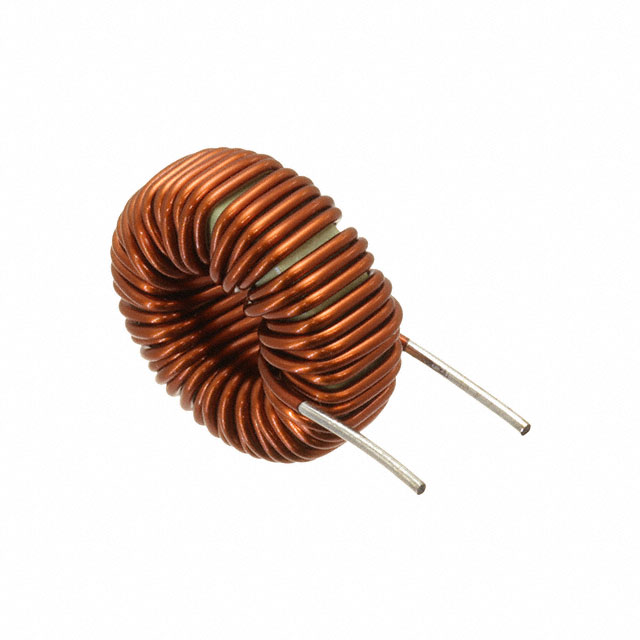

The KEMET PHBC12-1R0A0080V is a through-hole toroidal power inductor from the PHBC series, designed for high-current applications. It features an inductance of 80 µH with a tolerance of ±20%. The component supports a maximum DC current of 5 A and has a maximum DC resistance of 35.6 mΩ. Constructed with Fe-Ni dust core material, it offers low core loss and high saturation magnetic flux density. The unit operates within a temperature range of -40 °C to +125 °C and utilizes radial leads for PCB mounting.

Common Mode Chokes Feature Summary

• Utilizes Fe-Ni dust core material for low core loss and high saturation magnetic flux density
• Radial leaded toroidal design suitable for high-current applications
• Through-hole mounting configuration for standard PCB integration

Common Mode Chokes Applications

• High-current power supply circuits
• Differential mode chokes
• Power filtering stages

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with required thermal management standards for the intended operating environment. Cross-reference datasheets for any recent product change notifications or manufacturing updates that may affect specifications.

Common Mode Chokes Selection Notes

Select this component when a robust toroidal inductor with high saturation characteristics is required for power handling. The Fe-Ni core material provides advantages in efficiency under heavy load conditions compared to standard iron powder cores. Consider the physical footprint and lead spacing for PCB layout constraints during the design phase.

Common Mode Chokes Part Context

This component belongs to the KEMET PHBC series of fixed power inductors. The series is characterized by its toroidal geometry and use of advanced core materials to minimize energy loss. These inductors are engineered for reliability in demanding power electronics environments where stable inductance under high current stress is critical.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure any replacement maintains equivalent inductance, current rating, and physical mounting dimensions.
