PHBC13-1R2A0045V

Common Mode Chokes Overview

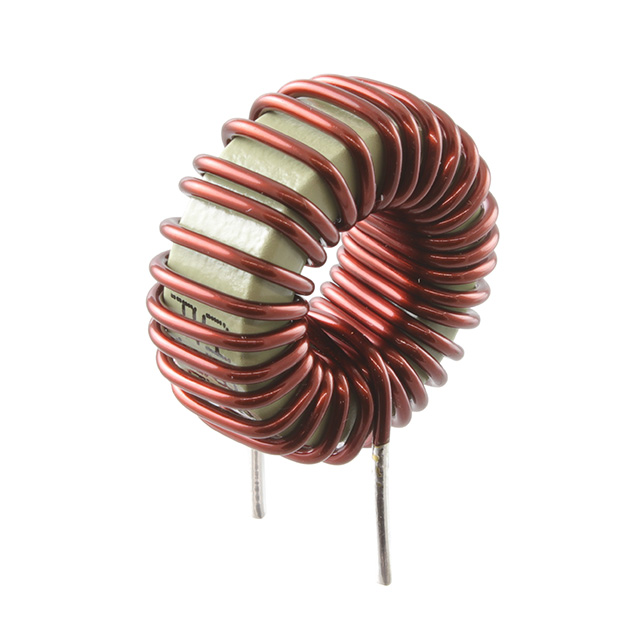

The KEMET PHBC13-1R2A0045V is a through-hole power inductor from the PHBC series, designed for differential mode noise suppression. It features a vertical leaded configuration with a nominal inductance of 45 µH and a tolerance of ±20%. The component supports a maximum DC current of 6 A and exhibits a maximum DC resistance (DCR) of 18.3 mΩ. This axial leaded design facilitates integration into AC line filter applications requiring compact electromagnetic interference mitigation.

Common Mode Chokes Feature Summary

• Vertical leaded construction for standard PCB mounting
• Differential mode choke functionality for EMI suppression
• High current handling capability up to 6 A

Common Mode Chokes Applications

• AC line filters for consumer electronics
• Electromagnetic interference (EMI) noise suppression
• Power supply input filtering

Common Mode Chokes Procurement Notes

Verify the specific electrical parameters against the official KEMET datasheet prior to procurement. Confirm that the 6 A current rating and 18.3 mΩ DCR align with the target circuit requirements. Ensure the vertical leaded package dimensions are compatible with the intended PCB layout and mechanical constraints.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for differential mode filtering in power applications. The 45 µH value and 6 A rating suit moderate power levels. Consider the physical size and lead spacing for assembly compatibility. Verify thermal performance under continuous load conditions relative to the ambient operating environment.

Common Mode Chokes Part Context

This part belongs to the KEMET PHBC series of fixed power inductors. These components are specifically engineered as common mode or differential mode chokes for AC line filtering. The series offers various inductance values and current ratings to address diverse EMI suppression needs in electronic equipment powered by AC sources.

Common Mode Chokes Replacement Considerations

Cross-reference with other PHBC series variants for different inductance or current requirements. Verify pinout and dimensional compatibility before substituting with generic equivalents. Ensure any replacement meets the same voltage and temperature specifications.
