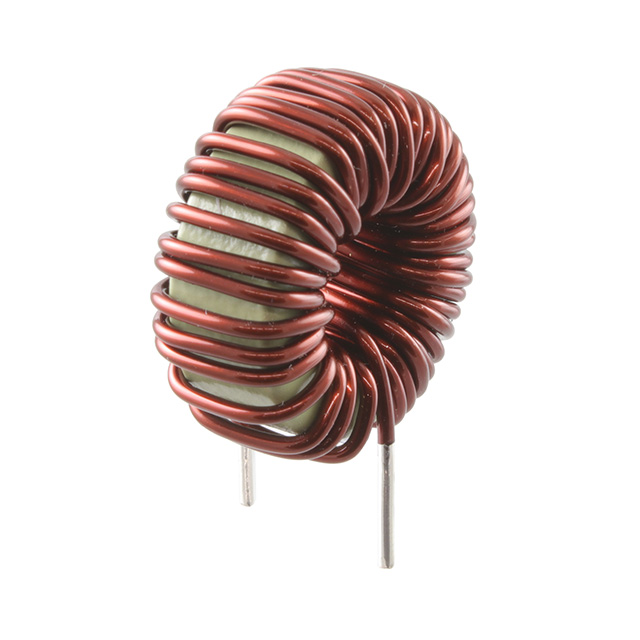

PHBC13-1R2A0081V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 81UH 6A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC13-1R2A0081V
- Description：CMC 81UH 6A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk,Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：24.7mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" Dia (30.00mm)
- Height (Max)：1.181" (30.00mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：81 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC13-1R2A0081V
Common Mode Chokes Overview
The KEMET PHBC13-1R2A0081V is a fixed power inductor from the PHBC series, designed as a differential mode coil utilizing Fe-Ni core technology. It features a leaded vertical package with no base and two PC pins for through-hole mounting. The component provides an inductance of 81 µH with a tolerance of ±20%. It supports a maximum DC current of 6 A and exhibits a maximum DC resistance of 24.7 mΩ. The physical dimensions are 15.7 mm in length, 30.0 mm in width, and 30.0 mm in height.
Common Mode Chokes Feature Summary
- Utilizes Fe-Ni core technology for differential mode filtering applications
- Vertical leaded design with two PC pins for board mounting
- Conforms to EMI suppression standards for AC line filtering
Common Mode Chokes Applications
- AC line filter circuits for consumer electronics
- Electromagnetic interference (EMI) noise suppression
- Differential mode coil applications in power supplies
Common Mode Chokes Procurement Notes
Verify the specific part number PHBC13-1R2A0081V against official KEMET documentation to confirm the 81 µH inductance and 6 A current rating. Ensure the vertical leaded package style matches the target PCB layout requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before procurement.
Common Mode Chokes Selection Notes
Select this component when differential mode filtering is required for AC line applications. The Fe-Ni core material offers specific magnetic properties suitable for EMI suppression. Consider the 6 A current handling capability and 24.7 mΩ resistance for thermal management. Verify that the vertical leaded form factor fits the assembly constraints compared to toroidal or surface mount alternatives.
Common Mode Chokes Part Context
This component belongs to the PHBC series of power inductors manufactured by KEMET Electronics Corporation. The series is characterized by its use in AC line filters to suppress electromagnetic interference. These coils are available in various sizes and designs, including common mode, differential mode, and dual mode configurations, catering to diverse electronic equipment needs.
Common Mode Chokes Replacement Considerations
Consult official KEMET documentation for confirmed substitute part numbers within the PHBC series or equivalent Fe-Ni core inductors. Verify that any replacement maintains the 81 µH inductance, 6 A current rating, and compatible physical dimensions for direct integration.
