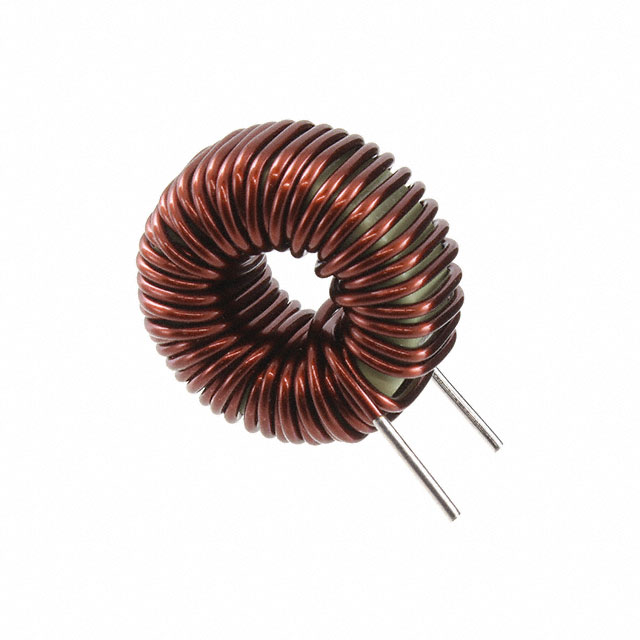

PHBC13-1R2A0127V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 127UH 6A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC13-1R2A0127V
- Description：CMC 127UH 6A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk,Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：31.7mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" Dia (30.00mm)
- Height (Max)：1.181" (30.00mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：127 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC13-1R2A0127V
Common Mode Chokes Overview
The KEMET PHBC13-1R2A0127V is a through-hole toroidal power inductor from the PHBC series, utilizing a Fe-Ni core. It features an inductance of 127 µH with a tolerance of ±20%. The component supports a maximum DC current of 6 A and has a maximum DC resistance (DCR) of 31.7 mΩ. Designed for PCB mounting with radial leads, it operates within a temperature range of -40°C to +125°C.
Common Mode Chokes Feature Summary
- Radial leaded toroidal construction for through-hole PCB integration
- Fe-Ni core material optimized for differential mode filtering applications
Common Mode Chokes Applications
- Differential mode noise suppression in power supply circuits
- EMI filtering for electronic equipment input stages
- General-purpose power inductors in industrial control systems
Common Mode Chokes Procurement Notes
Verify the specific suffix '1R2A0127V' against the manufacturer's official datasheet to confirm the exact inductance value and current rating. Ensure the radial lead configuration matches the target PCB footprint dimensions. Confirm RoHS compliance status if required by the end product specifications.
Common Mode Chokes Selection Notes
Select this component when a high-current toroidal inductor is needed for differential mode filtering. The 6 A rating and low DCR make it suitable for power lines where significant current flows. Verify that the physical dimensions fit the assembly constraints compared to shielded alternatives.
Common Mode Chokes Part Context
This part belongs to the KEMET PHBC series of normal mode coils. These components are designed as unshielded toroidal inductors using iron-nickel alloy cores. They are distinct from common mode chokes and are intended for single-phase or differential signal paths in power electronics.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the PHBC series with similar inductance and current ratings. Verify that any replacement maintains the same radial lead spacing and toroidal form factor for mechanical compatibility.
