PHBC14-1R2A0067V

Common Mode Chokes Overview

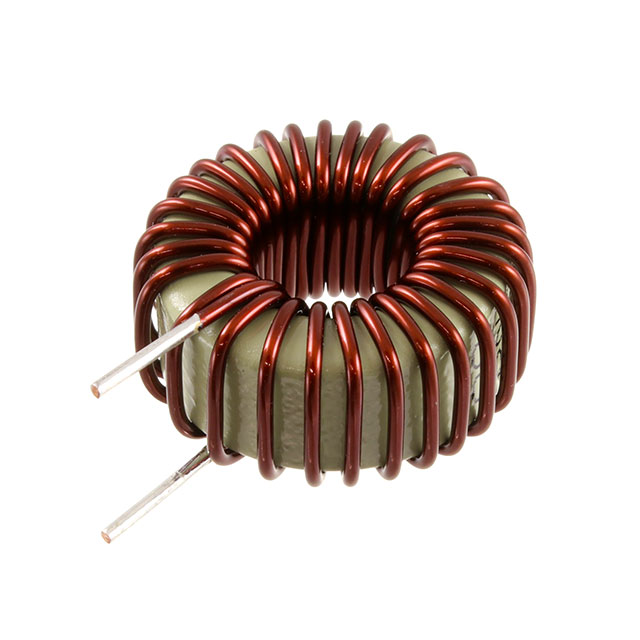

The KEMET PHBC14-1R2A0067V is a through-hole common mode choke belonging to the PHBC series. It features a ferrite core with an inductance of 67 µH and a rated current of 8 A. The component has a maximum DC resistance of 22.2 mΩ and operates within a temperature range of -55°C to +125°C. It utilizes radial leads for PCB mounting.

Common Mode Chokes Feature Summary

• Radial leaded construction for standard printed circuit board installation
• Ferrite core design optimized for common mode noise suppression
• High thermal stability supporting operation up to 125°C

Common Mode Chokes Applications

• Electromagnetic interference (EMI) filtering in power supply circuits
• Noise suppression in industrial control systems
• Signal integrity protection in data communication interfaces

Common Mode Chokes Procurement Notes

Verify the manufacturer part number PHBC14-1R2A0067V against official KEMET documentation to confirm specifications. Ensure compatibility with required inductance, current rating, and physical footprint dimensions before integration into the design.

Common Mode Chokes Selection Notes

Select this component when high current handling capability of 8 A is required alongside effective common mode noise attenuation. Consider the radial package style and operating temperature range relative to the target application environment constraints.

Common Mode Chokes Part Context

This component is part of the KEMET PHBC series of normal mode coils utilizing iron-nickel materials. These components are engineered for robust performance in demanding electronic environments requiring reliable signal conditioning and power line filtering.

Common Mode Chokes Replacement Considerations

Cross-reference with other PHBC series variants such as PHBC14-1R2A0120V for similar form factors. Verify that substitute parts match the 67 µH inductance and 8 A current ratings to maintain circuit functionality.
