PHBC14-1R2A0120V

$11.83

Description：CMC 120UH 8A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk,Tray

SKU:905ffce2fc15 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PHBC14-1R2A0120V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 120UH 8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PHBC14-1R2A0120V

Description：CMC 120UH 8A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk,Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：29.9mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.339" Dia (34.00mm)
Height (Max)：1.339" (34.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：120 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PHBC14-1R2A0120V

PHBC14-1R2A0120V

Common Mode Chokes Overview

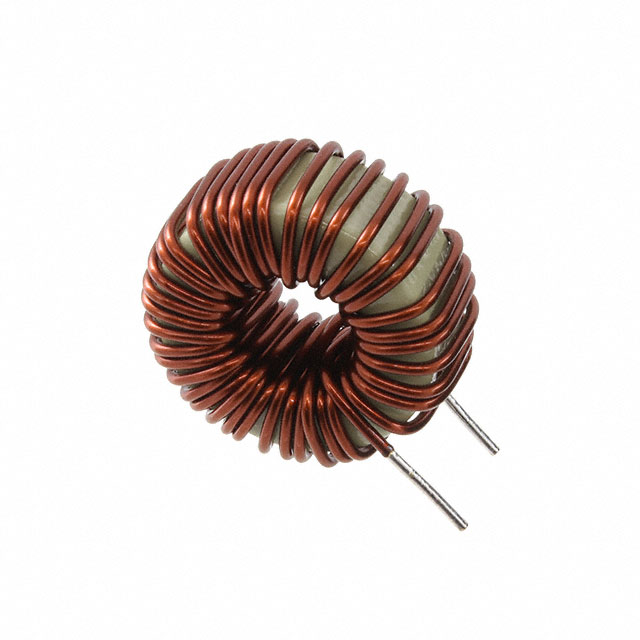

The KEMET PHBC14-1R2A0120V is a leaded power inductor with a toroidal core and radial termination. It features an inductance of 120 uH, a maximum DC current rating of 8 A, and a maximum DC resistance of 29.9 mohms. The component has a tolerance of 20% and operates within a temperature range of -55°C to +125°C. Its physical dimensions are 34 mm in diameter and 18.6 mm in length, weighing 47 g.

Common Mode Chokes Feature Summary

Toroidal magnetic core design for efficient energy storage
Radial leaded termination for through-hole PCB mounting
Unshielded construction suitable for general power applications

Common Mode Chokes Applications

Power supply circuits
DC-DC converter filtering
General power electronics

Common Mode Chokes Procurement Notes

Verify the manufacturer part number PHBC14-1R2A0120V against official KEMET documentation to confirm specifications. Ensure compatibility with your PCB footprint and thermal requirements. Check for RoHS compliance status in the latest datasheet. Confirm availability through authorized distributors as stock levels vary.

Common Mode Chokes Selection Notes

Select this component when a 120 uH inductance with 8 A current handling is required. The unshielded design may require consideration for electromagnetic interference in dense layouts. Verify that the radial lead spacing matches the target printed circuit board layout constraints.

Common Mode Chokes Part Context

This component belongs to the PHBC series of leaded power inductors from KEMET. These components are designed for robust performance in power conversion applications. The toroidal shape provides high efficiency and low noise compared to other core geometries.
