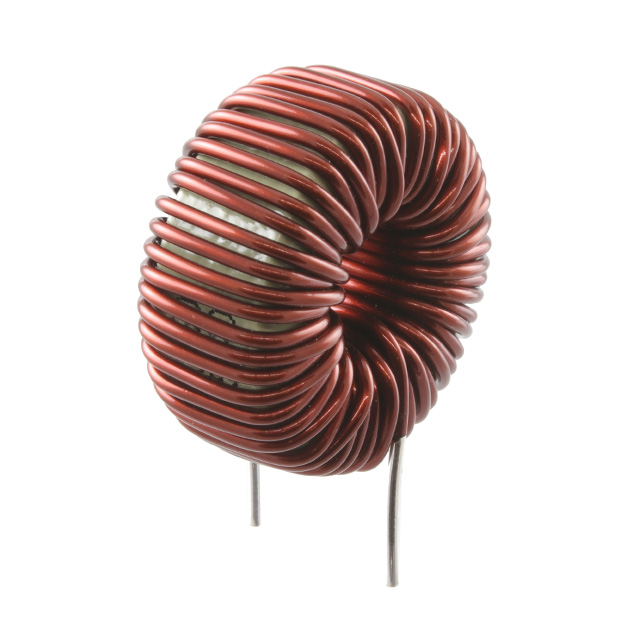

PHBC14-1R2A0187V

$6.62

Description：CMC 187UH 8A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk

SKU:0635c057f2ad Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PHBC14-1R2A0187V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 187UH 8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PHBC14-1R2A0187V

Description：CMC 187UH 8A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：37.6mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.339" Dia (34.00mm)
Height (Max)：1.339" (34.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：187 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PHBC14-1R2A0187V

PHBC14-1R2A0187V

Common Mode Chokes Overview

The KEMET PHBC14-1R2A0187V is a toroidal common mode choke from the PHBC series, designed for through-hole mounting. It features an inductance of 187 µH with a tolerance of 20% and supports a maximum RMS current of 8 A. The component exhibits a maximum DC resistance of 37.6 mΩ and operates within a temperature range of -40°C to +125°C. Constructed using wirewound technology, it provides effective noise suppression for two-line configurations in automotive and industrial power applications.

Common Mode Chokes Feature Summary

Toroidal core construction for efficient magnetic flux containment
High current handling capability suitable for power line filtering
Through-hole termination for robust mechanical stability

Common Mode Chokes Applications

Automotive power supply noise suppression
Industrial equipment EMI filtering
DC-DC converter input/output stages

Common Mode Chokes Procurement Notes

Verify the specific part number PHBC14-1R2A0187V against official KEMET documentation to confirm technical specifications. Ensure compatibility with existing board layouts regarding through-hole pin spacing and height constraints. Cross-reference datasheets for thermal performance under load conditions to validate suitability for the intended operating environment.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are required for common mode noise reduction. The 187 µH inductance value targets specific frequency attenuation needs. Consider the through-hole form factor if surface mount options are unsuitable for mechanical stress requirements or automated assembly constraints.

Common Mode Chokes Part Context

This component belongs to KEMET's PHBC series of toroidal common mode chokes. These devices utilize wirewound technology to achieve high saturation currents while maintaining compact dimensions. The series is engineered for demanding environments, offering reliable performance in automotive and industrial sectors where electromagnetic interference must be minimized.
