PHBC20-1R7A0097V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 97UH 12A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC20-1R7A0097V
- Description：CMC 97UH 12A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk,Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：16mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.622" Dia (41.20mm)
- Height (Max)：-
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：97 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC20-1R7A0097V
Common Mode Chokes Overview

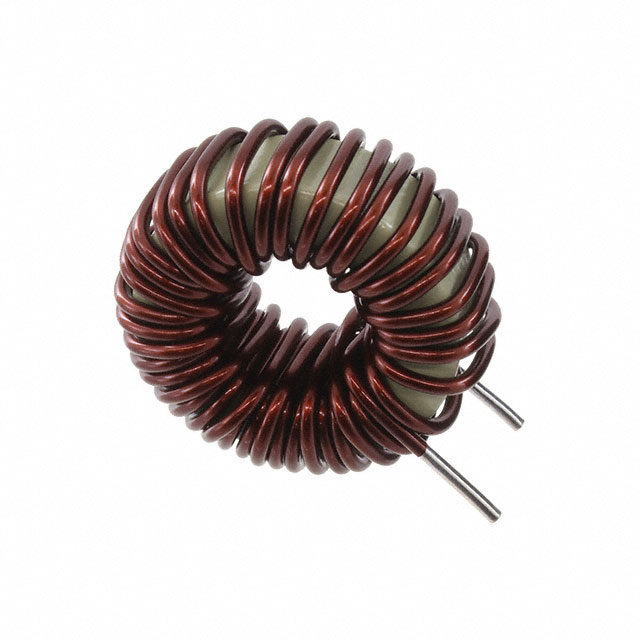

The KEMET PHBC20-1R7A0097V is a radial leaded power inductor from the PHBC series, designed for AC line filtering applications. It features a toroidal core construction with an unshielded design. The component provides an inductance of 97 µH with a tolerance of ±20%. It supports a maximum DC current of 12 A and exhibits a maximum DC resistance of 16 mΩ. The device operates within a temperature range of -40°C to +125°C and utilizes standard PCB mount terminals.
Common Mode Chokes Feature Summary
- Radial leaded toroidal construction for through-hole mounting
- Unshielded magnetic design suitable for normal mode filtering
- High current handling capability up to 12 A
Common Mode Chokes Applications
- AC line filter circuits
- Normal mode noise suppression
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific part number suffix against official KEMET documentation to ensure correct inductance and tolerance specifications. Confirm that the unshielded nature aligns with your electromagnetic interference requirements. Check RoHS compliance status as indicated in the latest datasheet before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when high current capacity is required for single-phase AC line filtering. The radial leaded format facilitates easy integration into through-hole PCB layouts. Ensure the operating environment stays within the specified -40°C to +125°C thermal limits to maintain performance stability and longevity.
Common Mode Chokes Part Context
This component belongs to the KEMET PHBC series of fixed power inductors. These parts are engineered for robust performance in power electronics. The PHBC series offers various inductance values tailored for different filtering needs while maintaining consistent physical dimensions and electrical characteristics across the family.
Common Mode Chokes Replacement Considerations
Consult KEMET's official cross-reference tools or datasheets for verified substitute part numbers. Do not assume compatibility based on similar inductance values alone; verify current ratings and physical footprint constraints.
