PHBC20-1R7A0152V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 152UH 12A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC20-1R7A0152V
- Description：CMC 152UH 12A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：20.4mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.622" Dia (41.20mm)
- Height (Max)：-
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：152 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC20-1R7A0152V
Common Mode Chokes Overview

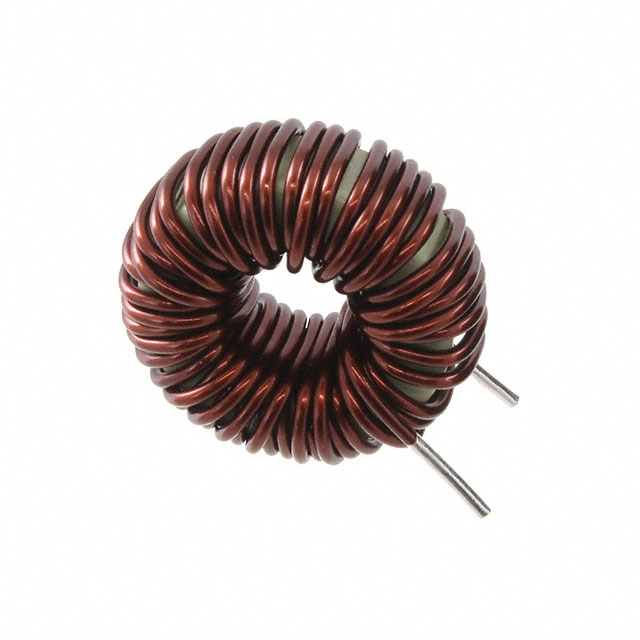

The KEMET PHBC20-1R7A0152V is a leaded power inductor from the PHBC series, designed for AC line filtering and EMI suppression. It features a toroidal core with radial termination for PCB mounting. The component provides an inductance of 152 µH at a test frequency of 100 kHz, with a maximum DC current rating of 12 A. Its maximum DC resistance is 20.4 mΩ. The device operates within a temperature range of -40 °C to +125 °C and has physical dimensions of 41.2 mm diameter by 20.4 mm height.
Common Mode Chokes Feature Summary
- Radial leaded construction for through-hole PCB integration
- Toroidal magnetic core design for efficient flux containment
- High current handling capability suitable for power applications
Common Mode Chokes Applications
- AC line filtering in consumer electronics
- Electromagnetic interference (EMI) noise suppression
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific part number against official KEMET documentation to confirm electrical parameters and mechanical dimensions. Ensure the ordering suffix matches the required tolerance and packaging configuration. Cross-reference datasheets for compliance standards such as RoHS and SVHC status prior to procurement.
Common Mode Chokes Selection Notes
Select this component based on the required 152 µH inductance and 12 A current capacity. Consider the radial leaded package for manual or wave soldering processes. Evaluate the thermal performance within the specified operating temperature range to ensure reliability in the target application environment.
Common Mode Chokes Part Context
This component belongs to the KEMET PHBC series of common mode chokes and power inductors. These devices are engineered for compact AC line filtering solutions. The series offers various inductance values and current ratings to support diverse electronic equipment requirements while maintaining low profile dimensions.
Common Mode Chokes Replacement Considerations
Consult official KEMET substitution guides for verified alternative part numbers within the PHBC series or compatible SHBC models. Ensure any substitute maintains identical inductance, current rating, and dimensional constraints.
