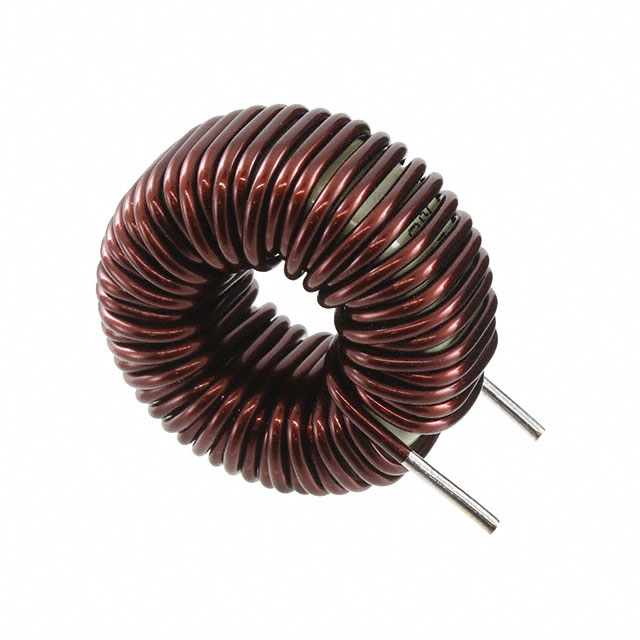

PHBC24N-2R0A0219V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 219UH 15A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC24N-2R0A0219V
- Description：CMC 219UH 15A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：15A
- DC Resistance (DCR) (Max)：19.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.988" Dia (50.50mm)
- Height (Max)：1.988" (50.50mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：219 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC24N-2R0A0219V
Common Mode Chokes Overview
The KEMET PHBC24N-2R0A0219V is a leaded power inductor from the PHBC series, designed for AC line filtering and electromagnetic interference (EMI) suppression. It features a toroidal core construction with a vertical orientation and two PC pins for through-hole mounting. The component provides an inductance of 219 µH with a tolerance of ±20%. It supports a maximum DC current of 15 A and exhibits a maximum DC resistance of 19.5 mΩ.
Common Mode Chokes Feature Summary
- Toroidal core design for effective EMI noise suppression
- Vertical leaded package for standard PCB mounting
- High current handling capability suitable for power applications
Common Mode Chokes Applications
- AC line filters
- Electromagnetic interference (EMI) suppression
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific part number against official KEMET documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with existing PCB footprints and thermal management requirements. Confirm that the leaded package style meets assembly process specifications. Cross-reference datasheet values for inductance, current rating, and DC resistance prior to integration.
Common Mode Chokes Selection Notes
Select this component when high current capacity and low DC resistance are required for AC line filtering applications. The toroidal geometry offers compact size relative to performance. Verify that the 15 A current rating aligns with system load requirements. Consider the vertical mounting profile for board space constraints.
Common Mode Chokes Part Context
This component belongs to the PHBC series of leaded power inductors manufactured by KEMET Electronics Corporation. These devices are engineered for robust performance in power electronics environments. The series utilizes toroidal cores to minimize external magnetic field emissions while maintaining high efficiency.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official KEMET resources or authorized distributors for verified cross-references.
