PHBC24N-2R1B0039V

Common Mode Chokes Overview

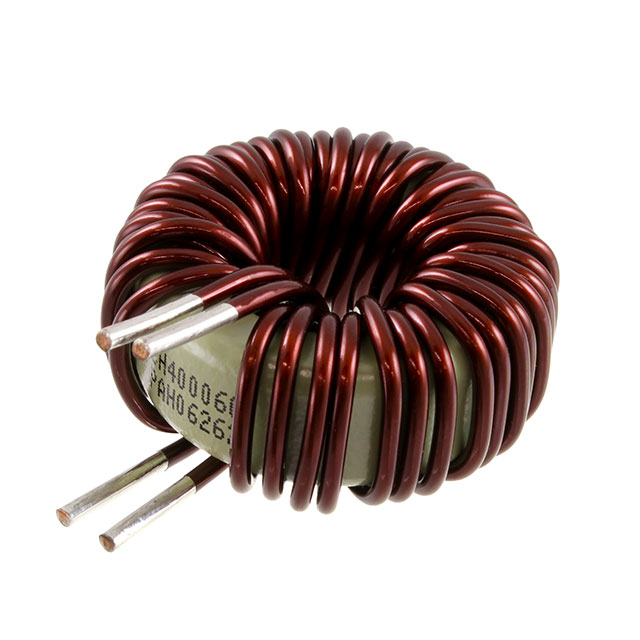

The KEMET PHBC24N-2R1B0039V is a leaded power inductor designed as an AC line filter. It features a toroidal core with a nominal inductance of 39 µH and a tolerance of 20%. The component supports a maximum DC current of 30 A and exhibits a maximum DC resistance (DCR) of 6.8 mΩ. It utilizes radial leads for through-hole mounting and operates within a standard temperature range suitable for general electronic applications.

Common Mode Chokes Feature Summary

• Provides electromagnetic interference (EMI) suppression for AC line applications
• Utilizes a compact toroidal design for efficient noise filtering
• Supports high current handling capabilities for power circuit integration

Common Mode Chokes Applications

• AC line filtering in consumer electronics
• Electromagnetic interference (EMI) noise suppression
• Power supply input stages requiring common mode or differential mode chokes

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and thermal characteristics. Ensure the selected variant matches the required current rating and inductance tolerance for the target circuit design. Cross-reference manufacturer documentation for any updates regarding material composition or compliance standards prior to final procurement decisions.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust EMI filtering with high current capacity. The 39 µH inductance value is suitable for attenuating specific frequency ranges in AC line applications. Consider the 6.8 mΩ DCR for efficiency calculations and thermal management planning within the system architecture.

Common Mode Chokes Part Context

This part belongs to the PHBC series of power inductors manufactured by KEMET Electronics Corporation. These components are engineered for use as coils or chokes in AC line filter assemblies. The series offers various sizes and designs, including common mode, differential mode, and dual mode configurations, catering to diverse EMI suppression needs in electronic devices.

Common Mode Chokes Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Ensure any replacement maintains equivalent inductance, current rating, and physical footprint compatibility.
