PHBC24N-2R3A0104V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 104UH 20A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC24N-2R3A0104V
- Description：CMC 104UH 20A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：20A
- DC Resistance (DCR) (Max)：10.4mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.949" Dia (49.50mm)
- Height (Max)：1.949" (49.50mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：104 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC24N-2R3A0104V
Common Mode Chokes Overview

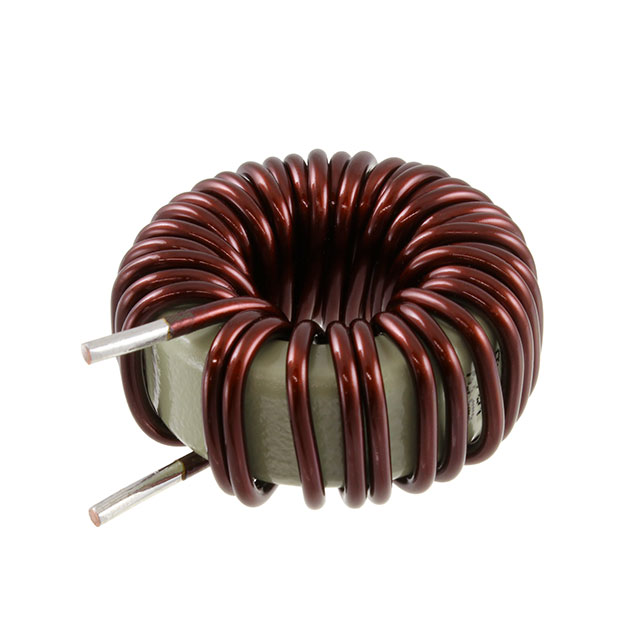

The KEMET PHBC24N-2R3A0104V is a toroidal power inductor from the PHBC series, utilizing a Fe-Ni core material. It features a nominal inductance of 104 µH with a tolerance of ±20%. The component supports a saturation current of 20 A and a DC resistance of 0.0104 ohms. Designed for through-hole mounting, it operates within a temperature range suitable for industrial applications.
Common Mode Chokes Feature Summary
- Toroidal geometry for efficient magnetic flux containment
- Fe-Ni core construction for high current handling
- Through-hole radial lead configuration
Common Mode Chokes Applications
- Differential mode filtering in power supplies
- Common mode choke applications
- Industrial power conversion circuits
Common Mode Chokes Procurement Notes
Verify the specific suffix against official KEMET documentation to confirm exact electrical tolerances and core material specifications. Ensure the ordering part number matches the required inductance value and current rating for the target circuit design before procurement.
Common Mode Chokes Selection Notes
Select this component for applications requiring high saturation current and low DC resistance in a compact toroidal form factor. Consider the physical dimensions and lead spacing for PCB layout compatibility. Evaluate thermal performance under continuous load conditions relative to the specified current ratings.
Common Mode Chokes Part Context
This component belongs to the KEMET PHBC series of differential mode coils. These inductors are engineered for robust performance in power electronics, offering stable inductance characteristics under varying current loads due to the specific iron-nickel alloy core composition.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult KEMET technical support or authorized distributors for verified cross-references based on specific electrical requirements.
