PHBC24W-2R1A0311V

$44.28

Description：CMC 311UH 15A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk

SKU:a9846d501e5a Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

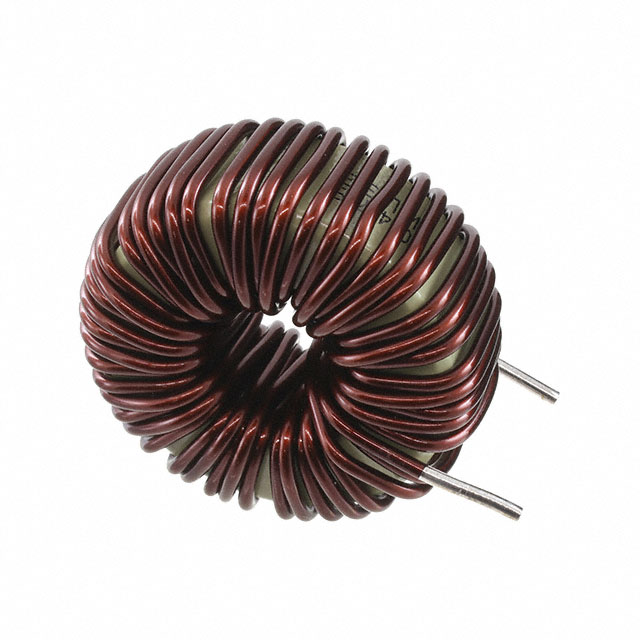

PHBC24W-2R1A0311V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 311UH 15A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PHBC24W-2R1A0311V

Description：CMC 311UH 15A 2LN TH
Series：PHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：15A
DC Resistance (DCR) (Max)：20.1mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.268" Dia (57.60mm)
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：311 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PHBC24W-2R1A0311V

PHBC24W-2R1A0311V

Common Mode Chokes Overview

The KEMET PHBC24W-2R1A0311V is a differential mode choke from the PHBC series, utilizing Fe-Ni core technology. It features a nominal inductance of 311 µH with a tolerance of ±20%. The component supports a maximum DC current of 15 A and has a maximum DC resistance of 20.1 mΩ. Designed for through-hole mounting, it operates within a temperature range of -40°C to +125°C.

Common Mode Chokes Feature Summary

Utilizes Fe-Ni core technology for stable magnetic performance
Designed specifically for differential mode noise suppression
Supports high current handling capabilities up to 15 A

Common Mode Chokes Applications

Power supply input filtering
Differential mode noise suppression in electronic circuits
EMI mitigation in power electronics

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure authenticity. Confirm that the required inductance value of 311 µH and current rating of 15 A align with your circuit design specifications before procurement. Ensure compatibility with through-hole assembly processes.

Common Mode Chokes Selection Notes

Select this component when differential mode noise reduction is required in power applications. The Fe-Ni core offers advantages in specific frequency ranges compared to ferrite cores. Verify that the 15 A current rating meets the peak load requirements of the target application without saturation.

Common Mode Chokes Part Context

This component belongs to the KEMET PHBC series of fixed inductors. The series is characterized by the use of Fe-Ni (Iron-Nickel) alloy cores, which provide distinct magnetic properties suitable for power filtering applications. The PHBC series is designed for robust performance in demanding electrical environments.
