PHBC24W-2R4A0174V

Common Mode Chokes Overview

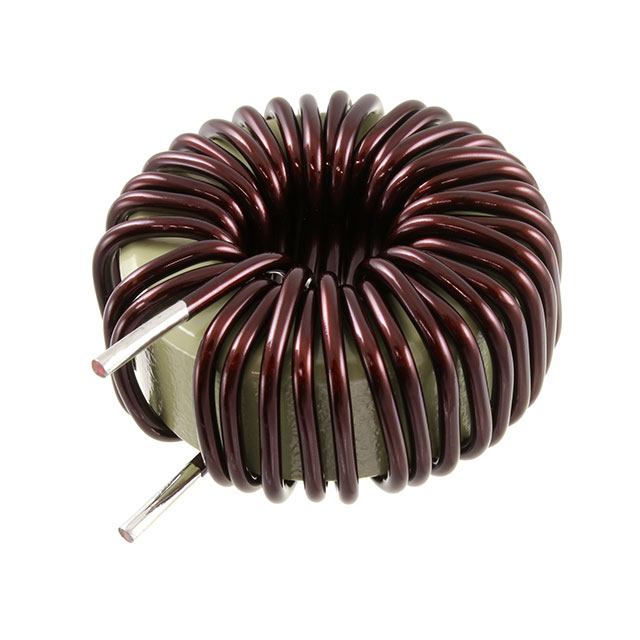

The KEMET PHBC24W-2R4A0174V is a leaded toroidal power inductor designed for high-current applications. It features an inductance of 174 µH with a tolerance of ±20%. The component supports a maximum DC current of 20 A and exhibits a maximum DC resistance (DCR) of 11.8 mΩ. It operates within a temperature range of -40°C to +125°C and utilizes radial termination for PCB mounting.

Common Mode Chokes Feature Summary

• Toroidal core construction for efficient magnetic flux containment
• High current handling capability suitable for power filtering
• Radial through-hole termination for standard PCB integration

Common Mode Chokes Applications

• Power line filtering in industrial equipment
• EMI suppression in AC/DC power supplies
• Current smoothing in motor drive circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix 'W' against the official KEMET datasheet to confirm mechanical dimensions and terminal configuration. Ensure the selected distributor provides the manufacturer's original data sheet for electrical parameter validation before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a robust, high-current toroidal inductor is required for through-hole assembly. The 174 µH value and 20 A rating make it suitable for applications demanding significant energy storage and low resistive losses in power conversion stages.

Common Mode Chokes Part Context

This part belongs to the KEMET PHBC series of leaded power inductors. These components are engineered for durability in demanding environments, offering a balance of high saturation current and stable inductance characteristics across the specified operating temperature range.

Common Mode Chokes Replacement Considerations

Consult KEMET documentation for direct cross-references. Verify that any substitute maintains the 174 µH nominal inductance, 20 A current rating, and compatible physical footprint for radial mounting.
