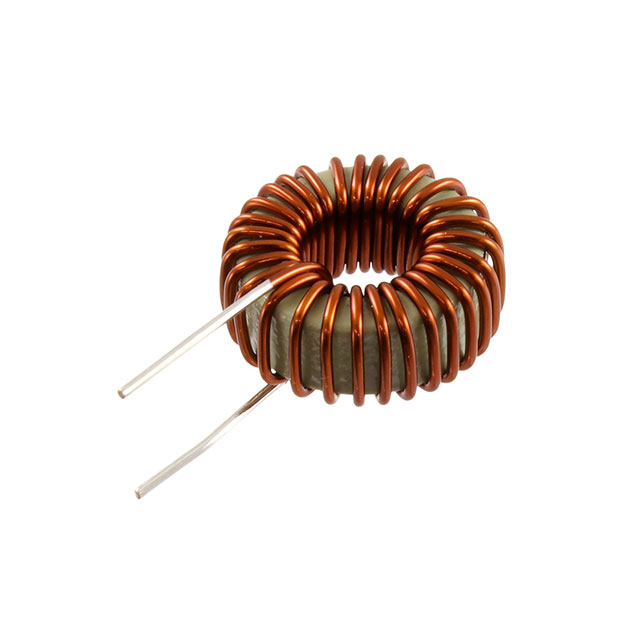

PHBC8S-0R6A0024V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 24UH 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC8S-0R6A0024V
- Description：CMC 24UH 2A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：41.1mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.630" Dia (16.00mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：24 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC8S-0R6A0024V
Common Mode Chokes Overview
The KEMET PHBC8S-0R6A0024V is a leaded common mode choke from the PHBC series, designed for commercial applications. It features a ferrite core with radial termination and unshielded construction. Key electrical parameters include an inductance of 24 µH with a 20% tolerance, a maximum DC current rating of 2 A, and a maximum DC resistance of 41.1 mΩ. The component operates within a temperature range of -40°C to +125°C and is tested at 100 kHz.
Common Mode Chokes Feature Summary
- Radial leaded through-hole mounting configuration
- Ferrite core construction for magnetic performance
- Unshielded design suitable for general commercial use
Common Mode Chokes Applications
- Commercial electronic equipment
- Common mode noise suppression
- Power supply filtering
Common Mode Chokes Procurement Notes
Verify the specific part number against official KEMET documentation to confirm compatibility with your circuit requirements. Ensure that the radial lead spacing and physical dimensions align with your PCB layout constraints. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before finalizing procurement decisions.
Common Mode Chokes Selection Notes
Select this component when a 24 µH common mode choke with a 2 A current rating is required for commercial-grade applications. Consider the unshielded nature and radial package form factor during mechanical integration. Verify that the operating temperature range meets the environmental conditions of the target application.
Common Mode Chokes Part Context
This component belongs to the PHBC series of normal mode coils manufactured by KEMET Electronics Corporation. The series utilizes Fe-Ni (Iron-Nickel) materials for specific magnetic properties, offering a robust solution for interference suppression in standard commercial electronics where high-frequency noise reduction is necessary.
Common Mode Chokes Replacement Considerations
The HHBC8S-0R6A0024V is a similar KEMET part with identical electrical specifications but may differ in physical dimensions or core material composition. Cross-referencing with other manufacturers requires careful verification of lead spacing, height, and saturation characteristics.
