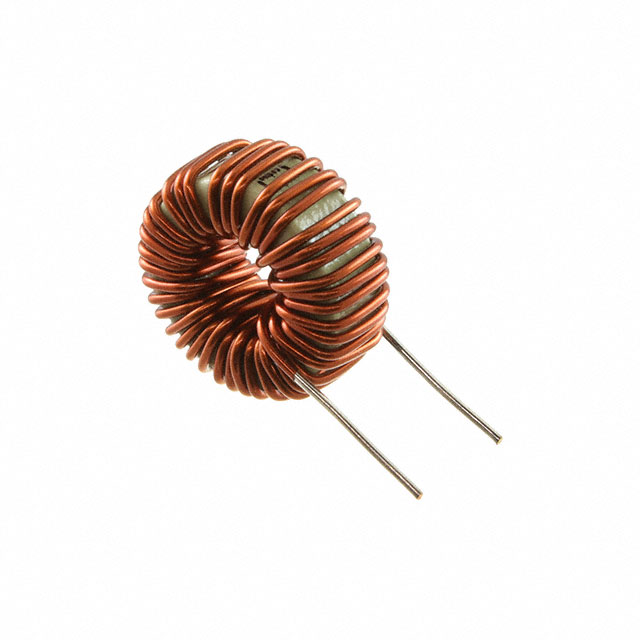

PHBC8S-0R6A0043V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 43UH 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PHBC8S-0R6A0043V
- Description：CMC 43UH 2A 2LN TH
- Series：PHBC
- Mfr：KEMET
- Package：Bulk,Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：54.1mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" Dia (17.00mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：43 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PHBC8S-0R6A0043V
Common Mode Chokes Overview
The KEMET PHBC8S-0R6A0043V is a through-hole power inductor from the PHBC series, featuring a toroidal ferrite core and radial termination. It provides an inductance of 43 µH with a tolerance of ±20%. The component supports a maximum DC current of 2 A and has a maximum DC resistance of 54.1 mΩ. It operates within a temperature range of -40°C to +125°C. The physical dimensions are 17 mm diameter, 9.1 mm width, and 17 mm height, with a lead diameter of 0.6 mm and a lead spacing of 7 mm.
Common Mode Chokes Feature Summary
- Toroidal ferrite core construction for efficient magnetic flux containment
- Radial through-hole termination for standard PCB mounting
- High thermal stability supporting operation up to 125°C
- Unshielded design suitable for general power applications
Common Mode Chokes Applications
- Differential mode chokes in power supply circuits
- EMI filtering in commercial electronic equipment
- General-purpose power inductors in industrial control systems
Common Mode Chokes Procurement Notes
Verify the specific part number suffix against official KEMET documentation to confirm exact electrical tolerances and packaging details. Ensure that the required current rating and inductance values align with the circuit design specifications before procurement. Cross-reference the manufacturer's datasheet for any updates on compliance or material changes.
Common Mode Chokes Selection Notes
Select this component when a 43 µH inductance with a 2 A current rating is required for through-hole assembly. Consider the unshielded nature of the toroidal design regarding potential electromagnetic interference coupling with nearby components. Verify that the PCB footprint accommodates the 7 mm lead spacing and 17 mm body diameter constraints.
Common Mode Chokes Part Context
This component belongs to the KEMET PHBC series of power inductors. These parts are designed as differential mode chokes using a toroidal geometry. The series offers various inductance values optimized for power filtering applications in commercial and industrial environments.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the PHBC series offering similar inductance and current ratings. Verify compatibility of lead spacing and body dimensions if replacing on existing PCBs. Consult KEMET documentation for alternative part numbers with adjusted tolerance or temperature characteristics.
