PHBC8S-0R6A0067V

Common Mode Chokes Overview

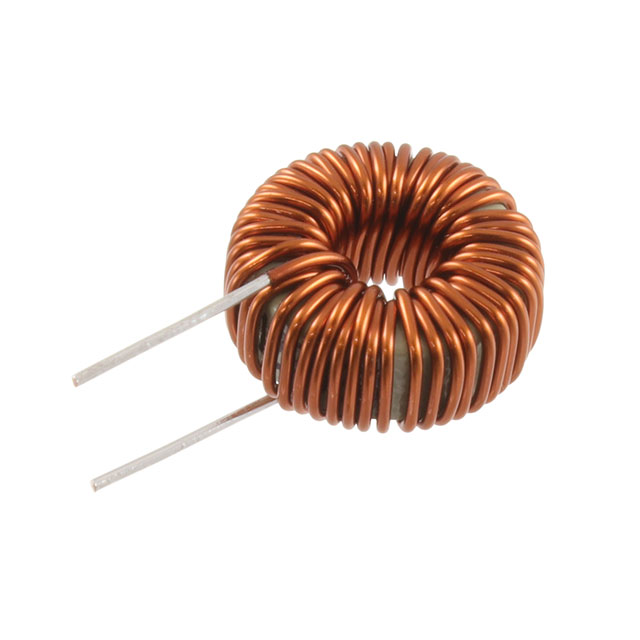

The KEMET PHBC8S-0R6A0067V is a through-hole toroidal power inductor from the PHBC series. It features an inductance of 67 µH with a tolerance of ±20%. The component supports a maximum DC current of 2 A and has a maximum DC resistance of 67.8 mΩ. It operates within a temperature range of -40 °C to +125 °C and is tested at 100 kHz. The device utilizes a ferrite core and is designed for PCB mounting with radial leads.

Common Mode Chokes Feature Summary

• Toroidal ferrite core construction for efficient magnetic flux containment
• Through-hole radial lead termination for standard PCB integration
• High thermal stability suitable for elevated operating environments

Common Mode Chokes Applications

• Commercial power supply filtering
• General-purpose differential mode chokes
• EMI suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix against official KEMET documentation to confirm exact electrical tolerances and material composition. Ensure the ordering part number matches the required inductance value and current rating for the target application. Cross-reference datasheet revisions to confirm compliance with current environmental standards before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 67 µH inductance with 2 A current handling is required in a through-hole format. Consider the physical dimensions of 17 mm x 9.1 mm x 17 mm for board layout constraints. Evaluate the 67.8 mΩ DCR for potential power loss calculations in the specific circuit design context.

Common Mode Chokes Part Context

This part belongs to the KEMET PHBC series, which consists of unshielded toroidal power inductors. These components are generally categorized for commercial applications rather than automotive-grade qualification. The series offers various inductance values while maintaining consistent mechanical footprints for modular design approaches.

Common Mode Chokes Replacement Considerations

Direct substitutes include other KEMET HHBC or PHBC variants with matching 67 µH inductance and 2 A ratings. Verify that alternative parts maintain compatible lead spacing and height constraints for existing PCB layouts.
