PHH227HKP4360ME4
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

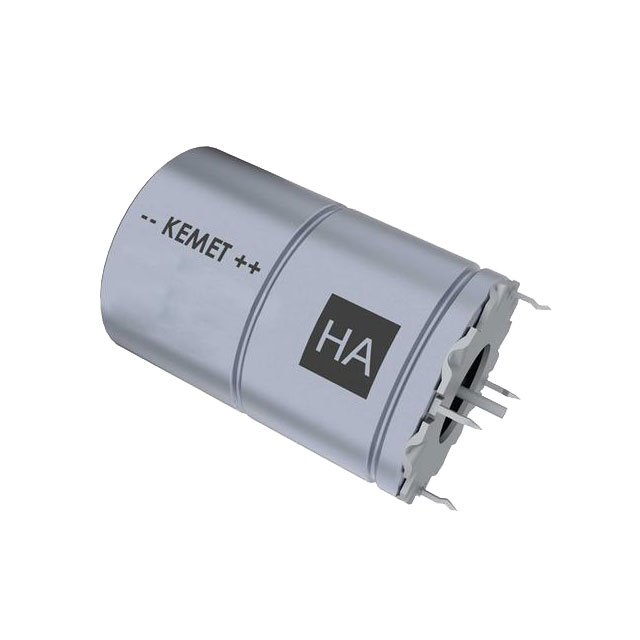

- Description：CAP ALU HYBRID RADL 25V 3,600F
- Series：PHH227
- Mfr：KEMET
- Package：Tray
- Type：Hybrid
- Capacitance：3600 µF
- Tolerance：±20%
- Voltage - Rated：25 V
- ESR (Equivalent Series Resistance)：72mOhm
- Lifetime @ Temp.：3000 Hrs @ 125°C
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Applications：Automotive
- Ripple Current @ High Frequency：36.7 A @ 100 kHz
- Lead Spacing：0.600" (15.24mm)
- Size / Dimension：0.638" Dia (16.20mm)
- Height - Seated (Max)：1.398" (35.70mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Ripple Current @ Low Frequency：7.34 A @ 100 Hz
- Features：High Vibration
