Product Detailed Parameters

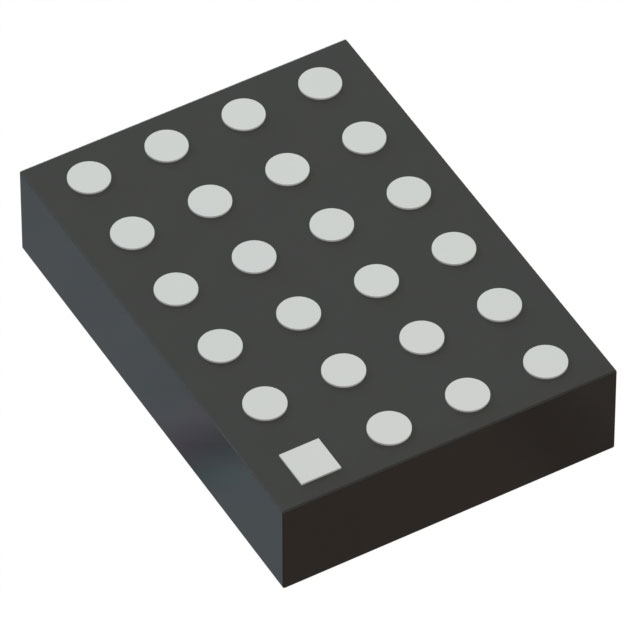

- Description：MIPI SWITCH,X1-LGA2417-24,T&R,5K
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Applications：Telecommunications
- Multiplexer/Demultiplexer Circuit：2:01
- Switch Circuit：SPDT
- Number of Channels：3
- On-State Resistance (Max)：5Ohm
- Voltage - Supply, Single (V+)：1.5V ~ 3.6V
- Voltage - Supply, Dual (V±)：-
- -3db Bandwidth：6GHz
- Features：MIPI
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：24-XFLGA
- Supplier Device Package：24-X1LGA (2.4x1.7)
- Grade：-
- Qualification：-
Download product information
Overview
The PI3WVR628XBEX is a two-data-lane MIPI switch featuring three 2:1 single-pole double-throw (SPDT) switches optimized for high-speed and low-power MIPI signals. It supports D-PHY and C-PHY protocols with data rates up to 4.5Gb/s for D-PHY and 3.5Gsps for C-PHY. The device operates on a VDD supply range of 1.5V to 3.6V, offering a typical bandwidth of 6.0 GHz and low crosstalk of -30 dB at 2.25 GHz. It utilizes a 24-pin X1-LGA2417-24 package.
Feature Summary
- Supports switching between two high-speed or low-power MIPI signals for CSI/DSI and C-PHY/D-PHY modules
- Provides low on-resistance matching and flatness for LP and HS MIPI modes
- Features extremely low quiescent current in both active and high-impedance states
- Includes break-before-make switching functionality to prevent signal overlap
Applications
- Cellular phones and smartphones
- Tablets
- Laptops
- Displays
Procurement Notes
Verify the component against the official Diodes Incorporated datasheet DS42007 Rev 4-2 to confirm electrical parameters and pin configurations. Ensure compatibility with the required MIPI signaling standards and voltage levels before integration into the design.
Selection Notes
Select this component when designing systems requiring reliable switching between dual MIPI data lanes. Consider its low skew and high bandwidth capabilities for maintaining signal integrity in high-speed mobile and computing applications.
Part Context
This part belongs to the PI3WVR series of video and MIPI switch ICs manufactured by Diodes Incorporated. It is specifically engineered to handle differential clock and data lines for mobile display and camera interfaces.
Replacement Considerations
Consult the manufacturer's documentation for verified alternative part numbers within the same product family that offer compatible pinouts and electrical characteristics.
FAQ
What is the maximum operating temperature for the PI3WVR628XBEX?
The recommended operating temperature range extends from -40°C to +85°C.
How does the OE pin control the device state?
When the OE pin is low, the IC is enabled. When OE is high, the IC enters a power-down state and all I/O ports become high impedance.
What is the typical ESD tolerance of the device?
The device offers an ESD tolerance of 2kV according to the Human Body Model (HBM) standard.
