Product Detailed Parameters
- Description：IC SWITCH SPDT X 2 15OHM 10UQFN
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Circuit：SPDT
- Multiplexer/Demultiplexer Circuit：2:01
- On-State Resistance (Max)：15Ohm
- Channel-to-Channel Matching (ΔRon)：150mOhm
- Voltage - Supply, Single (V+)：1.65V ~ 5.5V
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：12ns, 8ns
- -3db Bandwidth：220MHz
- Charge Injection：7pC
- Channel Capacitance (CS(off), CD(off))：2.8pF
- Current - Leakage (IS(off)) (Max)：1µA
- Crosstalk：-66dB @ 10MHz
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Surface Mount
- Package / Case：10-UFQFN
- Supplier Device Package：10-UQFN (1.5x2)
- Number of Circuits：2
- Grade：-
- Qualification：-
Download product information
Overview

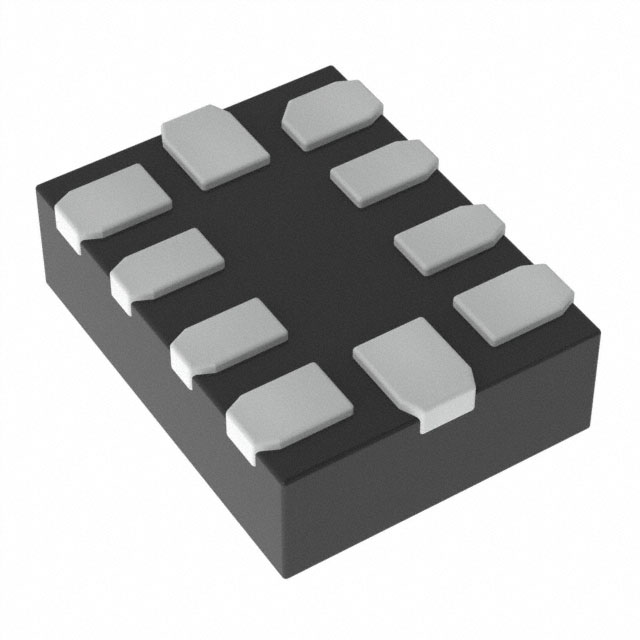

The PI5A23157ZUAEX is a low voltage dual SPDT analog switch manufactured by Diodes Incorporated. It operates within a supply voltage range of 1.65V to 5.5V and supports continuous currents up to ±50mA. The device features an on-resistance (RON) that varies with voltage, ranging from a maximum of 40Ω at 5V to 180Ω at 1.8V. It provides high isolation of -65dB and crosstalk of -66dB at 10MHz. The component utilizes a 10-pin UQFN package measuring 1.5mm x 2.0mm.
Feature Summary
- Dual single-pole double-throw (SPDT) configuration for independent signal routing
- Low power consumption with minimal supply current across operating temperatures
- High bandwidth supporting fast switching transitions
- Compliant with RoHS 3 directives and lead-free manufacturing standards
Applications
- Portable consumer electronics requiring low-voltage signal management
- Battery-powered devices utilizing multiple input sources
- Communication equipment needing isolated signal paths
Procurement Notes
Verify the specific ordering suffix against manufacturer documentation to confirm packaging details. Confirm compliance requirements such as RoHS 3 status before finalizing procurement specifications. Ensure the selected package variant matches the intended PCB footprint constraints.
Selection Notes
Evaluate the on-resistance characteristics relative to the target supply voltage to ensure acceptable signal loss. Consider the break-before-make delay timing for applications requiring precise switching sequences. Verify that the thermal dissipation capabilities align with the expected ambient operating conditions.
Part Context
This component belongs to the PI5A23157 family of low voltage analog switches. It shares functional similarities with other series members but differs in physical packaging. The ZUA suffix specifically denotes the 10-pin ultra-small quad flat no-lead package format.
Replacement Considerations
Direct substitutes include the PI5A23157UEX, which offers identical electrical performance in a different MSOP package format. Cross-referencing pinouts and thermal characteristics is necessary when transitioning between package types.
FAQ
What is the maximum continuous current rating?
The device supports a continuous current of ±50mA through the NO, NC, and COM pins.
How does the on-resistance vary with voltage?
On-resistance increases as supply voltage decreases, reaching approximately 180Ω at 1.8V compared to 40Ω at 5V.
Is the device compliant with RoHS 3?
Yes, the product is fully compliant with EU Directive 2015/863 (RoHS 3) and contains no purposely added lead.
