PI5PD2557ZCEX

Overview

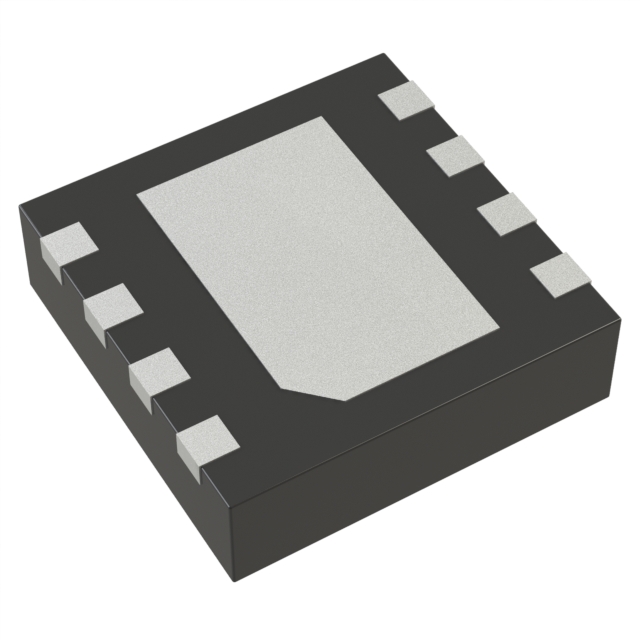

The PI5PD2557ZCEX is a precision power distribution load switch manufactured by Diodes Incorporated. It operates within a supply voltage range of 2.5 V to 5.5 V and features a maximum on-resistance of 35 mOhms. The device supports an output current of 5 A with adjustable current limiting between 500 mA and 5 A. It includes programmable soft-start capabilities, characterized by a maximum turn-on time of 5 ms and a maximum turn-off time of 2 ms. Designed for surface-mount installation, it is housed in a V-DFN3030-8 package and functions reliably across an operating temperature range from -40°C to +85°C.

Feature Summary

• Integrates precision current limiting with adjustable thresholds to protect downstream loads from overcurrent conditions.
• Features programmable soft-start control to manage inrush current during power-up sequences.
• Provides low on-resistance conduction path to minimize power loss and thermal generation in high-current applications.

Applications

• Power distribution networks in portable computing devices
• Load switching in industrial equipment requiring precise current management
• Peripheral power control in automotive infotainment systems

Procurement Notes

Verify component authenticity through authorized Diodes Incorporated distributors or certified partners. Confirm the specific suffix designation matches project requirements, as packaging variations may exist. Request official datasheets and compliance documentation prior to integration. Validate that the V-DFN3030-8 footprint aligns with existing PCB layouts. Ensure environmental specifications meet operational standards for the intended deployment environment.

Selection Notes

Select this component when a single-channel load switch with high current capacity and precise regulation is required. The 35 mOhm on-resistance suits applications demanding efficient power delivery. Consider the adjustable current limit feature for protecting sensitive circuits. The wide input voltage range allows compatibility with various system power rails. Evaluate the thermal performance of the V-DFN3030-8 package against board-level heat dissipation capabilities.

Part Context

This part belongs to the PI5PD series of power distribution switches from Diodes Incorporated. These components are engineered for robust power management in compact electronic designs. The series emphasizes precision control and protection features suitable for modern digital systems. Diodes Incorporated utilizes advanced manufacturing processes to ensure consistent performance across the product line.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative manufacturers. Ensure any replacement maintains the same package dimensions and thermal characteristics.
