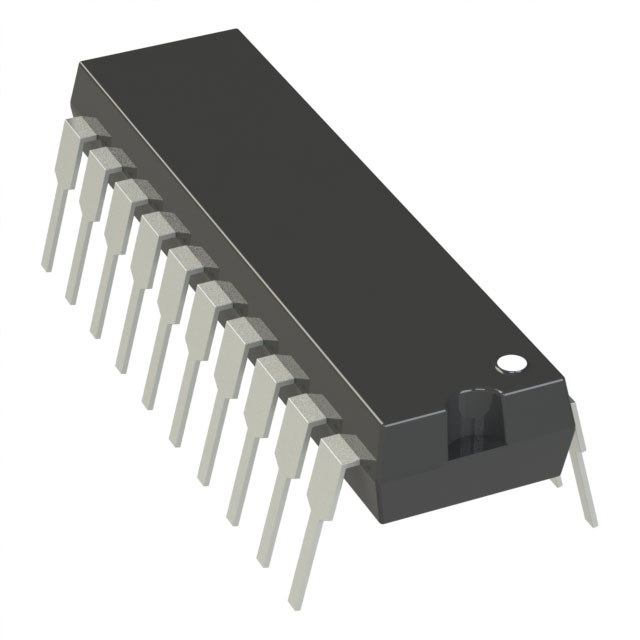

PIC24F04KL101-I/P

Microcontrollers Overview

The PIC24F04KL101-I/P is a 16-bit microcontroller from the PIC24F16KL402 family, featuring a modified Harvard architecture and up to 16 MIPS operation at 32 MHz. It includes 4 KB of Flash program memory, 512 bytes of data RAM, and one UART module. The device operates within a voltage range of 1.8V to 3.6V and supports low-power modes including Sleep and Idle. It incorporates a 10-bit A/D converter with seven channels, two CCP modules, and one analog comparator.

Microcontrollers Feature Summary

• Incorporates XLP technology for ultra-low power consumption across multiple operating modes.
• Features a high-performance 16-bit CPU with hardware multiplier and divider capabilities.
• Supports flexible oscillator options including internal oscillators and PLL frequency multiplication.

Microcontrollers Applications

• Low-cost general-purpose embedded control systems
• Battery-powered devices requiring extended operational life
• Simple serial communication interfaces

Microcontrollers Procurement Notes

Verify the specific package type and temperature rating against project requirements. Confirm that the pinout compatibility aligns with existing PCB layouts if migrating from other PIC24F variants. Ensure development tools support the specific instruction set and memory configuration.

Microcontrollers Selection Notes

Select this model for applications needing basic 16-bit processing without complex analog peripherals. It is suitable for designs prioritizing cost efficiency and moderate I/O counts. Consider alternative family members if higher memory capacity or additional communication interfaces are required.

Microcontrollers Part Context

This component belongs to the PIC24F16KL402 family, which provides scalable low-power 16-bit solutions. The family shares consistent pinouts and architectural features, facilitating migration between different memory sizes and peripheral configurations within the same product line.

Microcontrollers Replacement Considerations

PIC24F04KL100 offers similar functionality in a 14-pin package. PIC24F08KL201 provides double the program memory while maintaining the 20-pin form factor. Verify pin compatibility before substituting these alternatives.
