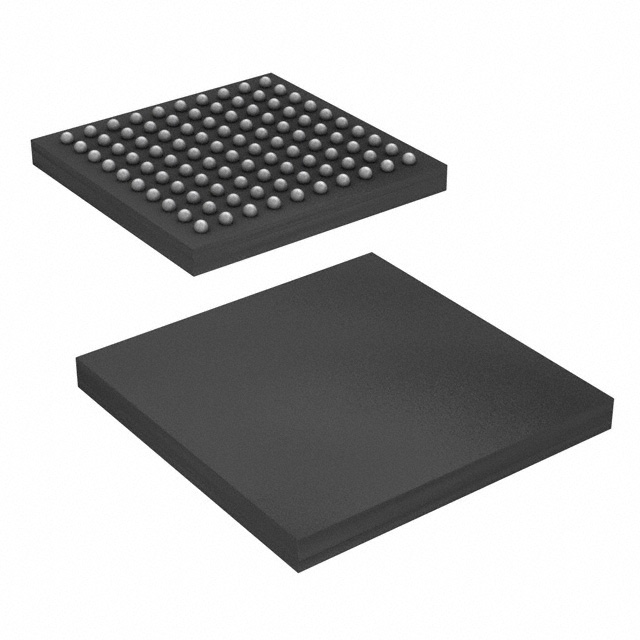

PIC32MX270F512LT-I/GJX

Microcontrollers Overview

The PIC32MX270F512LT-I/GJX is a microcontroller based on the PIC32MX architecture, featuring a 32-bit MIPS M4K core operating at up to 80 MHz. It integrates 512 KB of Flash program memory and 64 KB of SRAM. The device includes an integrated USB 2.0 Full-Speed Host/Device controller with DMA support. Peripheral connectivity comprises multiple Enhanced Universal Synchronous Asynchronous Receiver Transmitters (EUSART), Serial Peripheral Interfaces (SPI), Inter-Integrated Circuit (I2C) modules, and ten-channel 10-bit Analog-to-Digital Converters (ADC).

Microcontrollers Feature Summary

• Integrates a high-performance 32-bit MIPS M4K processor core for efficient code execution.
• Includes built-in USB 2.0 full-speed capabilities with direct memory access support.
• Provides extensive peripheral interfaces including multiple communication protocols and analog conversion channels.

Microcontrollers Applications

• USB-enabled embedded control systems
• Industrial automation controllers
• Consumer electronics devices requiring serial communication

Microcontrollers Procurement Notes

Verify the specific suffix 'I/GJX' against the manufacturer's official documentation to confirm temperature range and package type. Ensure that the ordering information matches the exact part number required for the design. Cross-reference the datasheet revision history to confirm compatibility with existing firmware and hardware designs before finalizing procurement.

Microcontrollers Selection Notes

Select this component when a balance of processing power and peripheral richness is required within a compact footprint. The integration of USB and multiple serial interfaces reduces external component count. Evaluate the 80 MHz operational speed against application latency requirements. Consider the available I/O pins and memory size relative to software complexity and data buffering needs.

Microcontrollers Part Context

This part belongs to the PIC32MX family of 32-bit microcontrollers designed by Microchip Technology. The family targets applications needing robust performance and integrated peripherals in a cost-effective solution. The MX series typically offers a mix of standard and enhanced peripherals suitable for general-purpose embedded control tasks.

Microcontrollers Replacement Considerations

Consult official cross-reference lists for compatible parts. Verify pinout compatibility and register-level differences if substituting with other PIC32 variants. Ensure voltage levels and clock speeds match system requirements.

Microcontrollers FAQ

What is the maximum operating frequency of the PIC32MX270F512LT-I/GJX?

The device supports a maximum operating frequency of 80 MHz.

Does this microcontroller include USB functionality?

Yes, it features an integrated USB 2.0 full-speed host/device controller with DMA support.
