PIC32MZ2048EFM100-E/GJX

Microcontrollers Overview

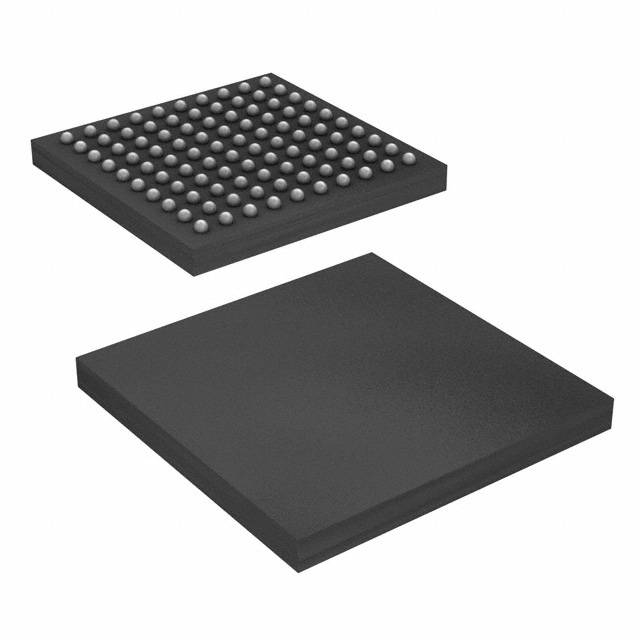

The PIC32MZ2048EFM100-E/GJX is a 32-bit microcontroller from the PIC32MZ EF family, featuring a MIPS M-Class core operating at up to 200 MHz. It integrates 2 MB of Flash memory and 512 KB of SRAM within a 100-pin TFBGA package. The device supports an extensive peripheral set including Ethernet MAC, dual CAN ports, USB OTG, and multiple communication interfaces. It includes hardware acceleration for cryptographic operations and floating-point calculations.

Microcontrollers Feature Summary

• Integrates a MIPS M-Class processor core with hardware floating-point unit
• Includes dedicated cryptographic accelerator for security applications
• Supports high-speed connectivity via Ethernet MAC and dual CAN controllers
• Features integrated USB On-The-Go capability

Microcontrollers Applications

• Industrial control systems requiring robust connectivity
• Automotive electronics utilizing CAN bus networks
• IoT devices needing secure data transmission
• Embedded systems with display interface requirements

Microcontrollers Procurement Notes

Verify silicon revision B3 compatibility when integrating this component. Review errata DS80000663 for specific workarounds regarding oscillator configurations and peripheral behaviors. Confirm that design implementations account for documented silicon anomalies to ensure reliable operation in final products.

Microcontrollers Selection Notes

Select this model for applications demanding high processing throughput alongside significant on-chip memory resources. The inclusion of crypto hardware and Ethernet makes it suitable for networked security endpoints. Evaluate pin count constraints as the TFBGA-100 package offers limited I/O availability compared to larger footprints.

Microcontrollers Part Context

This part belongs to the PIC32MZ EF series, which expands the PIC32 portfolio with enhanced embedded connectivity features. The series targets performance-critical applications by combining MIPS architecture with specialized peripherals like SQI and PMP. It represents a mid-to-high-end solution within Microchip's 32-bit MCU lineup.

Microcontrollers Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify functional equivalence regarding memory size and peripheral availability before swapping components.
