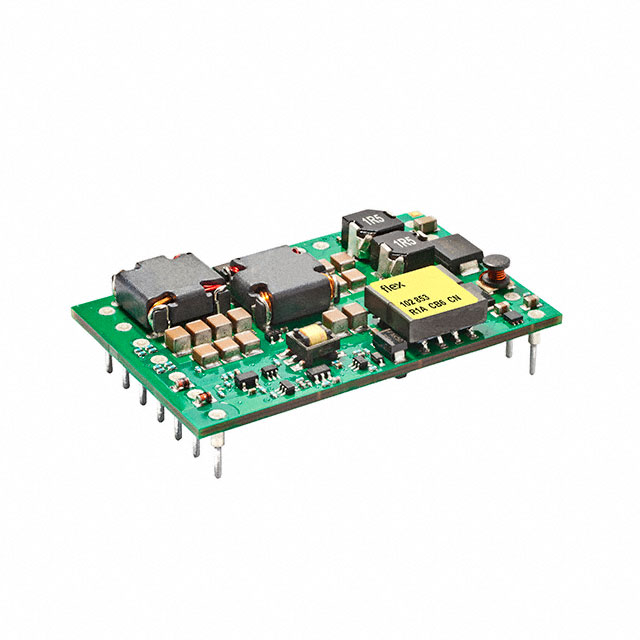

PIM4328P

PIM4328P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 3.3V 5V 58W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PIM4328P

• Description：DC DC CONVERTER 3.3V 5V 58W
• Series：PIM 4328 (540-648)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A, 3.6A
• Power (Watts)：58 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, PMBus™
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：99.10%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PIM4328P
