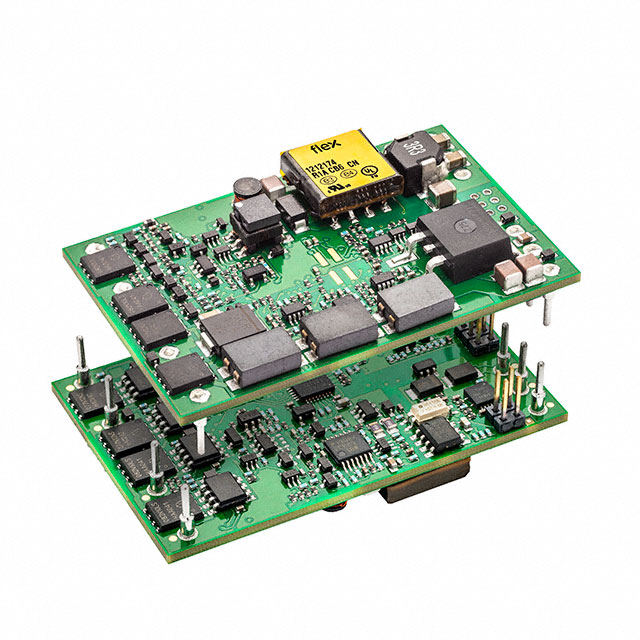

PIM4820BPD

PIM4820BPD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 0.85-7V 140W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PIM4820BPD

• Description：DC DC CONVERTER 0.85-7V 140W
• Series：PIM4820 (960-1080W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module, Digital
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：0.85 ~ 7V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：140 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, PMBus™
• Operating Temperature：-40°C ~ 110°C (With Derating)
• Efficiency：99.20%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PIM4820BPD
