PJSOT05C-02_R1_00001

PJSOT05C-02_R1_00001 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is TVS DIODE 5VWM 11.2VC SOT23. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for PJSOT05C-02_R1_00001

• Description：TVS DIODE 5VWM 11.2VC SOT23
• Series：-
• Mfr：Panjit International Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：11.2V
• Current - Peak Pulse (10/1000µs)：13A (8/20µs)
• Power - Peak Pulse：140W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：120pF @ 1MHz (Max)
• Operating Temperature：-50°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

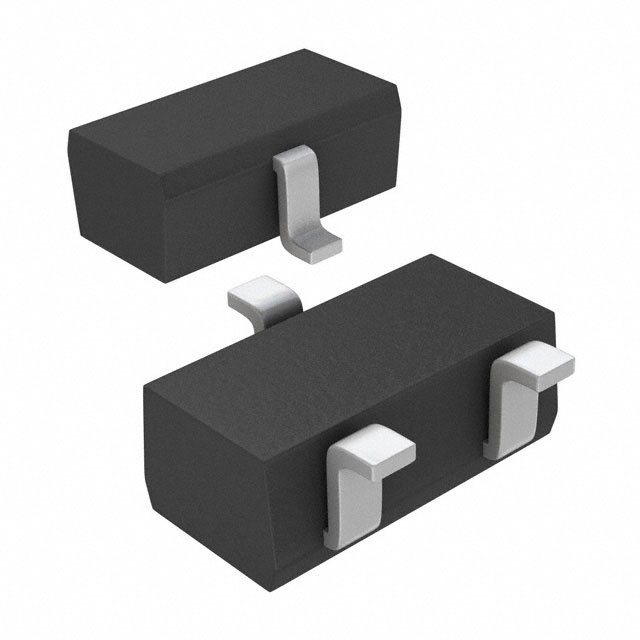

• Package / Case：TO-236-3, SC-59, SOT-23-3
• Supplier Device Package：SOT-23
• Unidirectional Channels：2
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for PJSOT05C-02_R1_00001
