PK-41N29W-24VQ

Overview

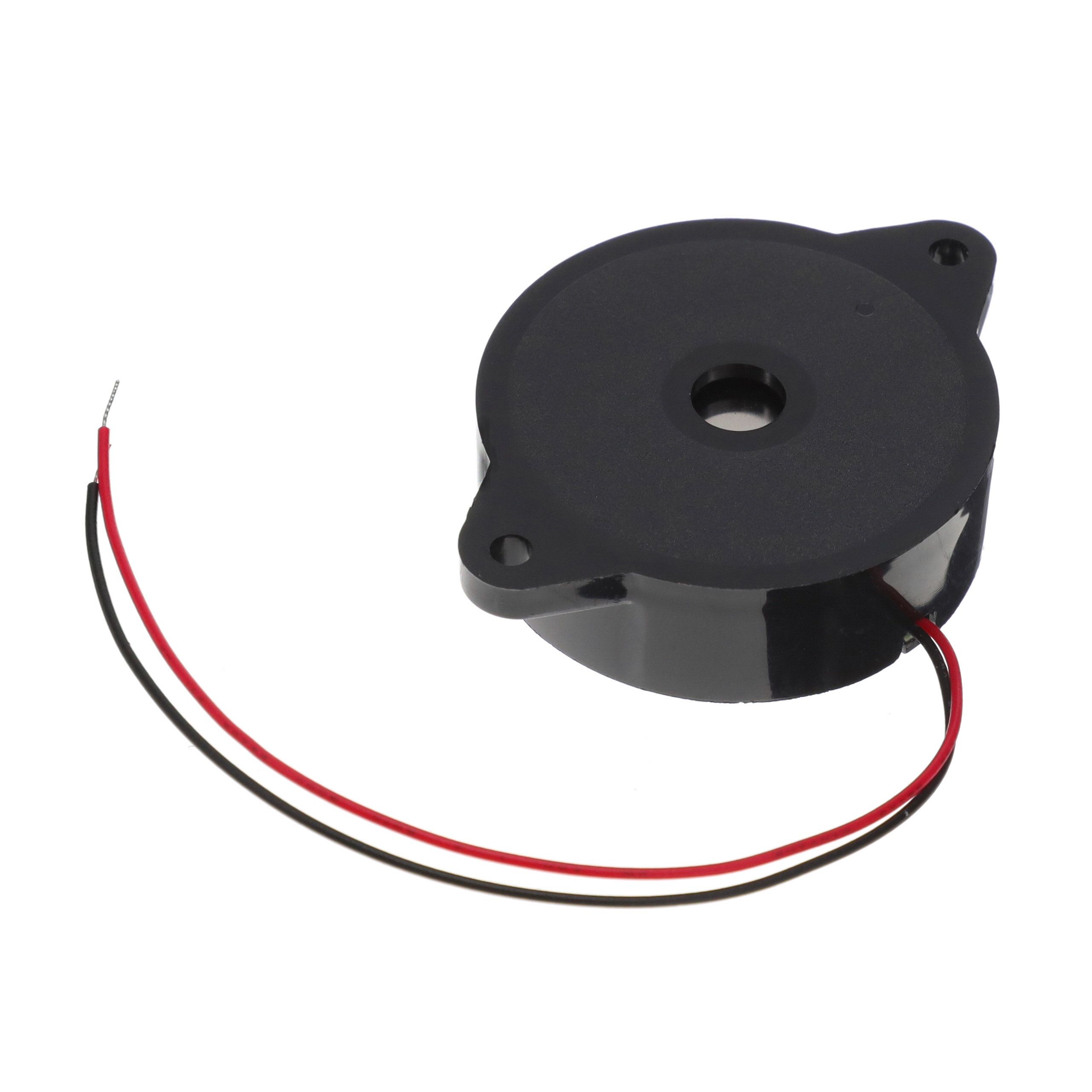

The PK-41N29W-24VQ is an internally driven piezoelectric buzzer manufactured by Mallory Sonalert Products Inc. Designed for industrial applications, this electromechanical audio indicator operates on a continuous tone at a frequency of 2900 Hz. It accepts a DC voltage input range of 12 to 28 volts and draws a current of 20 mA. The device produces a sound pressure level between 87 and 104 dB(A) when powered at 24 VDC. Physically, the unit measures 44 mm in diameter by 14 mm in length and utilizes through-hole wire leads for mounting.

Feature Summary

• Internally driven piezoelectric design eliminates the need for external oscillators
• Continuous tone operation provides consistent audible alerting
• Wide DC voltage acceptance range supports flexible power supply integration

Applications

• Industrial machinery status indication
• Factory automation control panels
• Equipment fault alarm systems

Procurement Notes

Verify that the operating environment remains within the specified electrical limits to ensure longevity. Confirm mechanical clearance for the 44 mm diameter housing before installation. Ensure wiring connections are secure to maintain signal integrity during continuous operation.

Selection Notes

Select this component when a self-contained, high-decibel audible alert is required without complex driver circuitry. The wide voltage tolerance simplifies power distribution in varied industrial settings. Consider the physical dimensions and through-hole mounting style for panel compatibility.

Part Context

This part belongs to the Mallory Sonalert industrial buzzer series, which focuses on reliable audio signaling for harsh environments. The product line emphasizes durability and straightforward integration into existing electrical systems. This specific model represents a standard solution for general-purpose industrial alarms.

Replacement Considerations

Consult official Mallory Sonalert documentation for direct cross-references. Verify that any substitute maintains the same voltage range, frequency, and acoustic output specifications.
