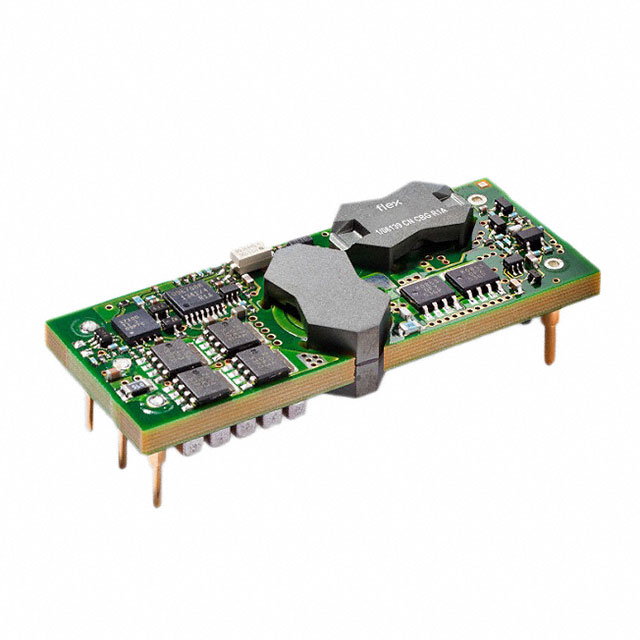

PKB4204PI

PKB4204PI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 240W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKB4204PI

• Description：DC DC CONVERTER 12V 240W
• Series：PKB4204 (240W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：240 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, OVP
• Operating Temperature：-30°C ~ 90°C (With Derating)
• Efficiency：95.50%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.89" W x 0.40" H (58.4mm x 22.7mm x 10.1mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKB4204PI
