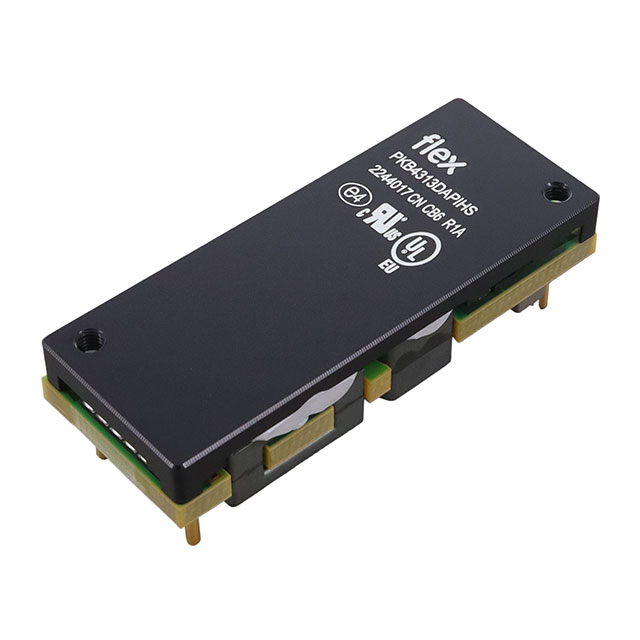

PKB4313DAPIHS

PKB4313DAPIHS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 390W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKB4313DAPIHS

• Description：DC DC CONVERTER 12V 390W
• Series：PKB4000D (390W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：32.5A
• Power (Watts)：390 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：95.60%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active High
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKB4313DAPIHS
