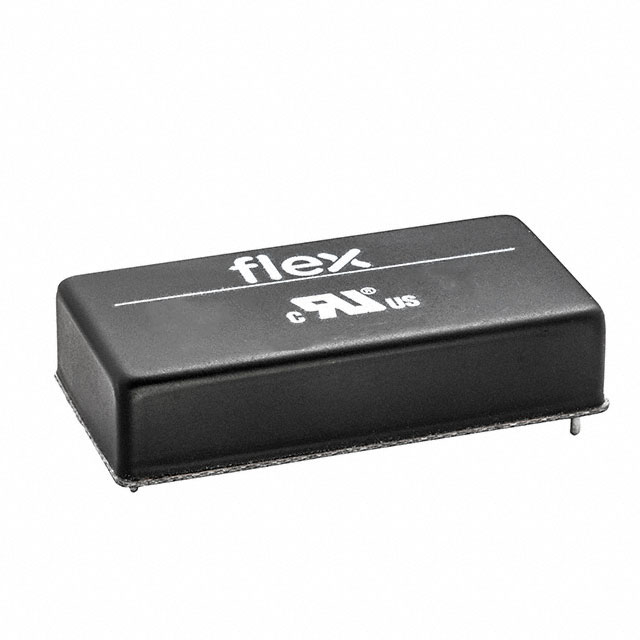

PKE7311API

PKE7311API is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 5V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKE7311API

• Description：DC DC CONVERTER 5V 30W
• Series：PKE 7000A (30W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：160V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：30 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 110°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, EN, IEC, TUV, UL
• Standard Number：50155; 62368-1
• Grade：-
• Qualification：-
