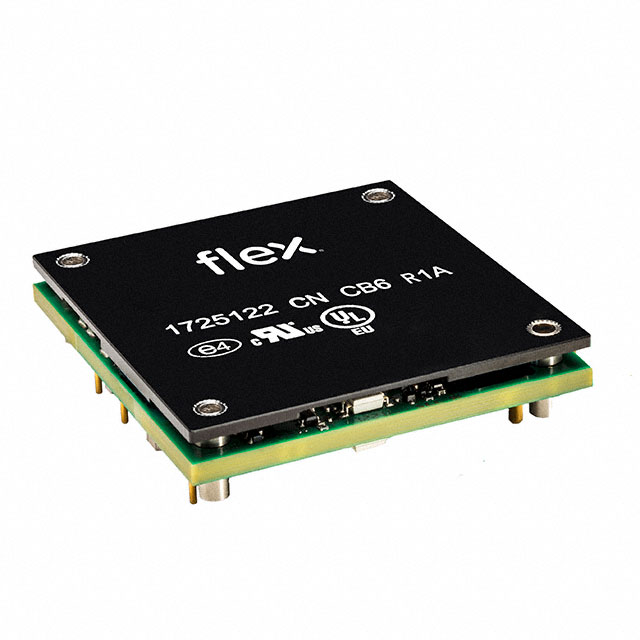

PKJ4716APIHS

PKJ4716APIHS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 28V 700W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKJ4716APIHS

• Description：DC DC CONVERTER 28V 700W
• Series：PKJ4000 (700W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：25A
• Power (Watts)：700 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：96.50%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKJ4716APIHS
