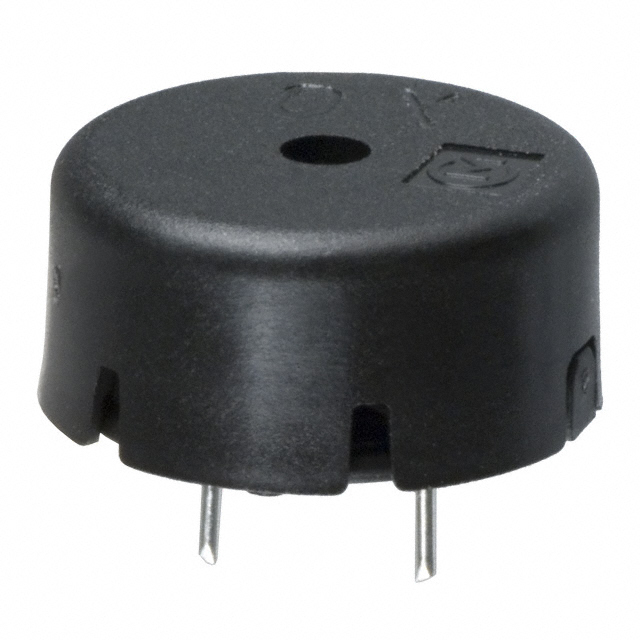

PKM13EPYH4002-B0
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：BUZZER PIEZO 1.5V 12.6MM TH
- Series：PK
- Mfr：Murata Electronics
- Package：Bulk
- Driver Circuitry：Transducer, Externally Driven
- Input Type：Zero-Peak Signal
- Frequency：4kHz
- Technology：Piezo
- Operating Mode：Ringer
- Duration：-
- Sound Pressure Level (SPL)：70dB @ 1.5V, 10cm
- Current - Supply：-
- Port Location：Top
- Operating Temperature：-40°C ~ 85°C
- Approval Agency：-
- Ratings：-
- Ingress Protection：-
- Mounting Type：Through Hole
- Termination：PC Pins
- Height - Seated (Max)：0.291" (7.40mm)
- Voltage - Rated：1.5 V
- Voltage Range：30V (Max)
- Size / Dimension：0.496" Dia (12.60mm)
Download product information
Overview
The PKM13EPYH4002-B0 is a piezoelectric sounder manufactured by Murata Electronics. It features an external drive type with pin termination for through-hole mounting. The device has a diameter of 13 mm and operates at a frequency of 4 kHz. It produces a sound pressure level of 85 dB. The rated voltage is 12 Vdc. The component is designed for use as an audio indicator or alert in electronic circuits.
Feature Summary
- Piezoelectric sounder with external drive capability
- Pin-type termination for through-hole installation
- Single tone operation at 4 kHz
- Compact 13 mm diameter form factor
Applications
- Audio indicators in consumer electronics
- Alert systems in industrial equipment
- Status signaling in automotive infotainment
- Sound generation in medical devices
Procurement Notes
Verify the current lifecycle status before procurement, as similar PKM series components have been subject to discontinuation notices. Confirm that the 12V rating and 4kHz frequency align with the target circuit design requirements. Ensure through-hole soldering processes are compatible with the pin termination style specified in the official datasheet.
Selection Notes
Select this component when a compact, high-intensity audible alert is required for through-hole PCB designs. The 12V rating suits standard logic-level power supplies. Consider the 85 dB output for environments requiring clear auditory feedback without excessive volume. Verify mechanical clearance for the 13 mm diameter during layout.
Part Context
This part belongs to the PKM series of piezoelectric buzzers from Murata Electronics. The series offers various sizes and electrical ratings for different acoustic needs. The PKM13EPYH4002-B0 specifically targets applications needing a balance between size and sound pressure level using a simple external drive interface.
Replacement Considerations
Check for direct substitutes within the PKM series with matching 12V and 4kHz specifications. Verify mechanical footprint compatibility if replacing on existing boards. Consult official Murata documentation for any updated product line recommendations due to potential lifecycle changes.
