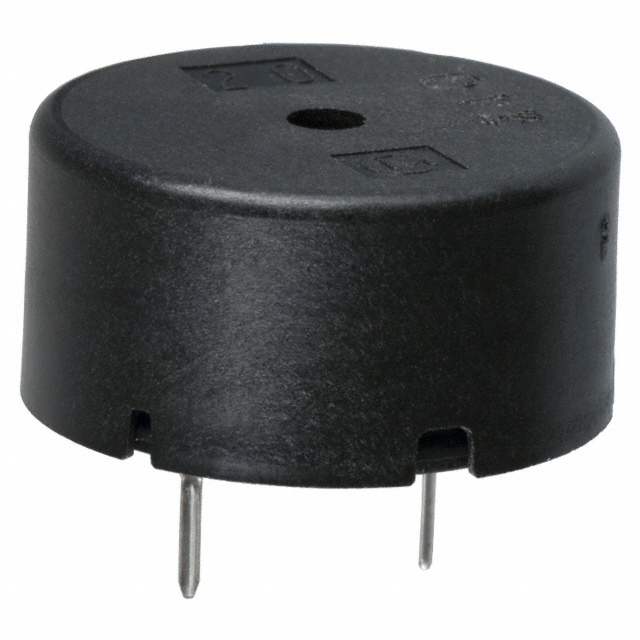

PKM22EPPH2001-B0

$0.49

Description：BUZZER PIEZO 1.5V 22MM TH
Series：PK
Mfr：Murata Electronics
Package：Bulk

SKU:233e6e7d8629 Category: Alarms, Buzzers, and Sirens Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 1.5V 22MM TH
Series：PK
Mfr：Murata Electronics
Package：Bulk
Driver Circuitry：Transducer, Externally Driven
Input Type：Zero-Peak Signal
Frequency：2kHz
Technology：Piezo
Operating Mode：Ringer
Duration：-
Sound Pressure Level (SPL)：70dB @ 1.5V, 10cm
Current - Supply：-
Port Location：Top
Operating Temperature：-20°C ~ 70°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.492" (12.50mm)
Voltage - Rated：1.5 V
Voltage Range：30V (Max)
Size / Dimension：0.866" Dia (22.00mm)

Download product information

PKM22EPPH2001-B0

Overview

The PKM22EPPH2001-B0 is a piezoelectric buzzer manufactured by Murata Electronics. It features through-hole mounting and external drive capability. The device operates with a maximum voltage of 25V and produces a continuous tone at a frequency of 2 kHz. The sound pressure level is rated at 70 dB. The component has a diameter of 22 mm and utilizes PC pins for termination.

Feature Summary

Piezoelectric transducer technology
Externally driven operation mode
Continuous tone generation

Applications

Audio indicators
Sound alerts

Procurement Notes

Verify the specific datasheet for the PKM22EPPH2001-B0 to confirm current manufacturing status and detailed electrical characteristics. Ensure compatibility with the target circuit's drive requirements and mounting constraints before finalizing procurement decisions.

Selection Notes

Select this component for applications requiring a simple, externally driven audio alert. Consider the 22 mm diameter and through-hole package when designing the PCB layout. Verify that the 2 kHz frequency meets the acoustic requirements of the end product.

Part Context

This part belongs to the PK series of piezoelectric buzzers from Murata. These components are designed for general-purpose audio indication tasks. The series offers various frequencies and mounting options to suit different electronic equipment needs.

Replacement Considerations

Consult official Murata documentation for verified substitute part numbers. Cross-reference specifications such as voltage rating, frequency, and physical dimensions to ensure functional equivalence.
