Product Detailed Parameters

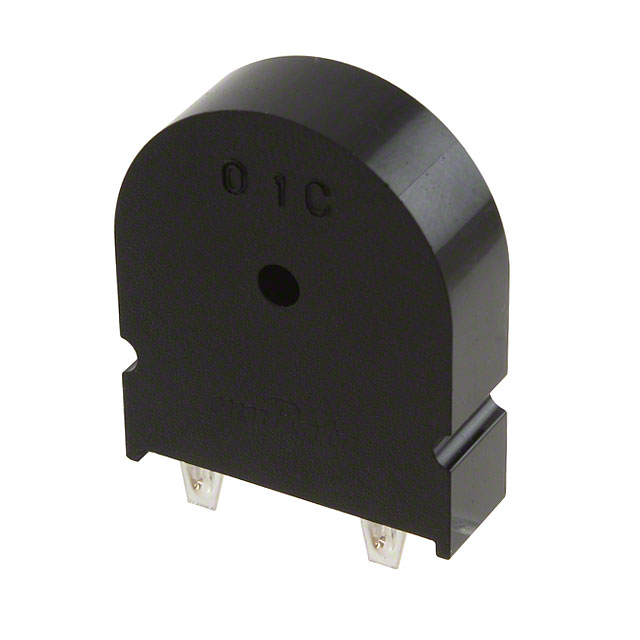

- Description：BUZZER PIEZO 3V 22X7MM W TH
- Series：PK
- Mfr：Murata Electronics
- Package：Bulk
- Driver Circuitry：Transducer, Externally Driven
- Input Type：Peak-Peak Signal
- Frequency：2kHz
- Technology：Piezo
- Operating Mode：Single Tone
- Duration：-
- Sound Pressure Level (SPL)：70dB @ 3V, 10cm
- Current - Supply：-
- Port Location：Side
- Operating Temperature：-20°C ~ 70°C
- Approval Agency：-
- Ratings：-
- Ingress Protection：-
- Mounting Type：Through Hole
- Termination：PC Pins
- Height - Seated (Max)：1.063" (27.00mm)
- Voltage - Rated：3 V
- Voltage Range：-
- Size / Dimension：0.866" L x 0.276" W (22.00mm x 7.00mm)
Download product information
Overview
The PKM22EPTH2001-B0 is an externally driven piezoelectric buzzer manufactured by Murata Electronics. It features a 22mm diameter design with through-hole solder pin termination for board mounting. The device operates at a rated voltage of 3V and a frequency of 2kHz, delivering a sound pressure level of 70dB. Maximum power supply voltage is 25V, with an operating temperature range of -20°C to 70°C. Dimensions are 22mm L x 7mm W x 26.5mm H.
Feature Summary
- Externally driven piezoelectric transducer technology
- Continuous tone operation mode
- Through-hole PC pin termination for PCB mounting
Applications
- Electronic timepieces
- Electronic calculators
- Telecommunication equipment
Procurement Notes
Verify the specific suffix against official Murata documentation to confirm exact acoustic and electrical characteristics. Ensure the selected variant matches the required driving circuitry and mounting style for the target application. Cross-reference datasheets for precise dimensional tolerances and environmental ratings before finalizing procurement specifications.
Selection Notes
Select this component for applications requiring low power consumption and high reliability without internal driver circuits. The external drive requirement allows for flexible signal integration. Verify that the 2kHz continuous tone meets the auditory notification needs of the end product within the specified temperature range.
Part Context
This part belongs to the Murata PKM series of piezoelectric buzzers. These components are designed as standalone transducers, distinct from self-oscillating types. They provide a cost-effective solution for audio indication in compact electronic devices where space and power efficiency are critical constraints.
Replacement Considerations
Direct substitutes include other PKM22 variants such as PKM22EPPH4001-B0 or PKM22EPTH2001-B0 equivalents. Verify compatibility regarding mounting style (through-hole vs surface mount) and operating frequency when selecting alternative part numbers.
