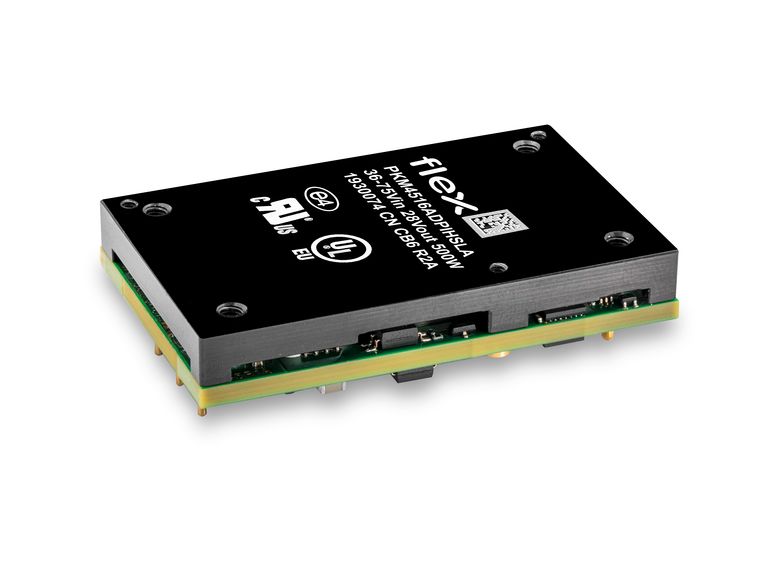

PKM4516ADPIHSLA

PKM4516ADPIHSLA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 28V 504W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKM4516ADPIHSLA

• Description：DC DC CONVERTER 28V 504W
• Series：PKM4516AD (504W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：18A
• Power (Watts)：504 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, HeatSink, PMBus™, Remote On/Off
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：95.50%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active High
• Approval Agency：cURus, IEC, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKM4516ADPIHSLA
