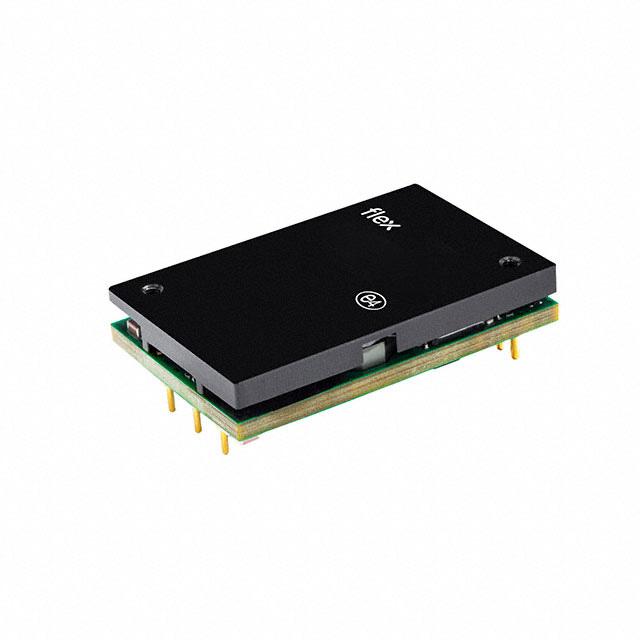

PKM4613NHPI

PKM4613NHPI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 600W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKM4613NHPI

• Description：DC DC CONVERTER 12V 600W
• Series：PKM4000NH (600W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：600 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：96.50%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.45" H (57.9mm x 36.8mm x 11.4mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKM4613NHPI
