PKMCS0909E48H0-R1

$0.82

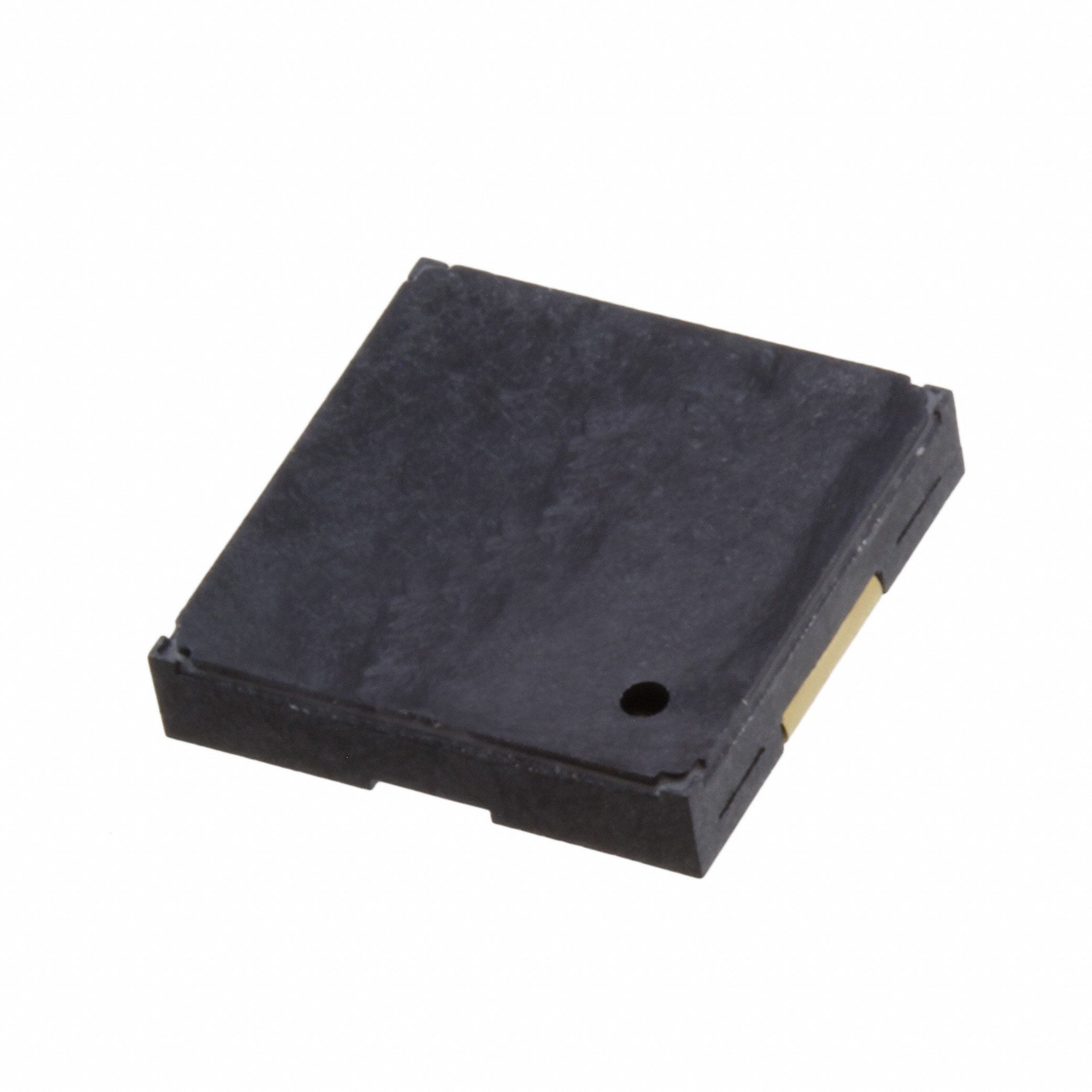

Description：BUZZER PIEZO 2.5V 9X9MM W SMD
Series：PK
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:10b7807407ca Category: Alarms, Buzzers, and Sirens Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 2.5V 9X9MM W SMD
Series：PK
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Driver Circuitry：Transducer, Externally Driven
Input Type：Zero-Peak Signal
Frequency：4.8kHz
Technology：Piezo
Operating Mode：-
Duration：-
Sound Pressure Level (SPL)：72dB @ 2.5V, 10cm
Current - Supply：-
Port Location：Top
Operating Temperature：-40°C ~ 85°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Surface Mount
Termination：Solder Pads
Height - Seated (Max)：0.126" (3.20mm)
Voltage - Rated：2.5 V
Voltage Range：12.5V (Max)
Size / Dimension：0.354" L x 0.354" W (9.00mm x 9.00mm)

Download product information

PKMCS0909E48H0-R1

Overview

The PKMCS0909E48H0-R1 is a piezoelectric buzzer manufactured by Murata Electronics, designed for surface-mount applications. It operates at a resonant frequency of 4.8 kHz with a typical sound pressure level of 75 dB and a minimum of 72 dB. The device features an external drive mechanism and is rated for a maximum voltage of 25 V. Its compact dimensions are 9 mm in length, 9 mm in width, and 1.9 mm in height. The component utilizes a single-tone configuration suitable for audio indication.

Feature Summary

External drive piezoelectric construction
Surface-mount package design
Single-tone audio output

Applications

Audio indicators
Alerts
Alarm systems

Procurement Notes

Verify the specific suffix against official documentation to confirm the 4.8 kHz frequency rating. Ensure that the selected variant matches the required sound pressure specifications for the target application environment. Confirm compliance with relevant environmental standards prior to integration.

Selection Notes

Select this component based on the requirement for a 4.8 kHz operating frequency and external drive capability. Consider the physical dimensions and surface-mount form factor when designing the PCB layout. Evaluate the sound pressure requirements to ensure adequate audibility for the intended use case.

Part Context

This part belongs to the PKMCS series of piezoelectric buzzers from Murata Electronics. The series offers various frequencies and sound pressure levels within a standardized 9x9 mm footprint. This specific model provides a higher frequency option compared to other variants in the same package size.

Replacement Considerations

Consult official Murata documentation for direct substitutes within the PKMCS series. Verify compatibility regarding frequency, sound pressure, and voltage ratings before considering alternative part numbers.
